ADL5561ACPZ-R7 ,Amplifier, Buffer IC - ADI

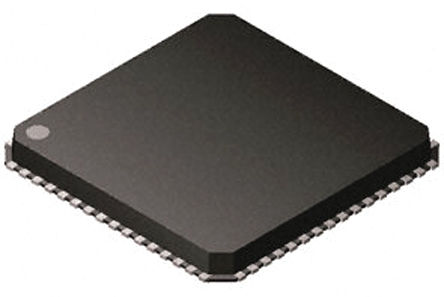

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

165 points

Part No

ADL5561ACPZ-R7
Manufacturer

ADI
ChipWorker Part#

CW661123
Category

Amplifier, Buffer IC
Package

LFCSP-16
Description

ANALOG DEVICES ADL5561ACPZ-R7 RF Amplifier IC, 15.5dB Gain / 8dB Noise, 10MHz to 2.9GHz, 3V to 3.6V, LFCSP-16
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 20.75

Buy ADL5561ACPZ-R7

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADL5561ACPZ-R7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADL5561ACPZ-R7 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADL5561ACPZ-R7
Manufacturer	ADI
ChipWorker Part#	CW661123
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	LFCSP-16
Supply Voltage (DC)	3.00V (min)
Supply Current	40 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	0.155 W
Common Mode Rejection Ratio	65 dB
Gain	15.5 dB
Input Bias Current	3 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	2.9 GHz
Power Dissipation (Max)	155 mW
Minimum CMRR Range	60dB ~ 75dB
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

GENERAL DESCRIPTION
The ADL5561 is a high performance differential amplifier optimized for RF and IF applications. The amplifier offers low noise of 2.1 nV/√Hz and excellent distortion performance over a wide frequency range, making it an ideal driver for high speed 8-bit to 16-bit analog-to-digital converters (ADCs).
The ADL5561 provides three gain levels of 6 dB, 12 dB, and 15.5 dB through a pin-strappable configuration. For the single-ended input configuration, the gains are reduced to 5.6 dB, 11.1 dB, and 14.1 dB. Using an external series input resistor expands the amplifier gain flexibility and allows for any gain selection from 0 dB to 15.5 dB.
The quiescent current of the ADL5561 is typically 40 mA and, when disabled, consumes less than 3 mA, offering excellent input-to-output isolation.
FEATURES
−3 dB bandwidth of 2.9 GHz (AV = 6 dB)
Low supply current: 40 mA
Pin-strappable gain adjust: 6 dB, 12 dB, 15.5 dB
Differential or single-ended input to differential output
Low noise input stage: 2.1 nV/√Hz RTI at AV = 12 dB
Low broadband distortion (Av = 6 dB)
10 MHz: −94 dBc HD2, −87 dBc HD3
70 MHz: −98 dBc HD2, −87 dBc HD3
140 MHz: −95 dBc HD2, −87 dBc HD3
250 MHz: −80 dBc HD2, −73 dBc HD3
IMD3s of −86 dBc @ 250 MHz center
Slew rate: 9.8 V/ns
Fast settling of 2 ns and overdrive recovery of 3 ns
Single-supply operation: 3 V to 3.6 V
Power-down control
Fabricated using the high speed XFCB3 SiGe process
APPLICATIONS
Differential ADC drivers
Single-ended-to-differential conversion
RF/IF gain blocks
SAW filter interfacing
