AO4612 - Alpha & Omega Semiconductor

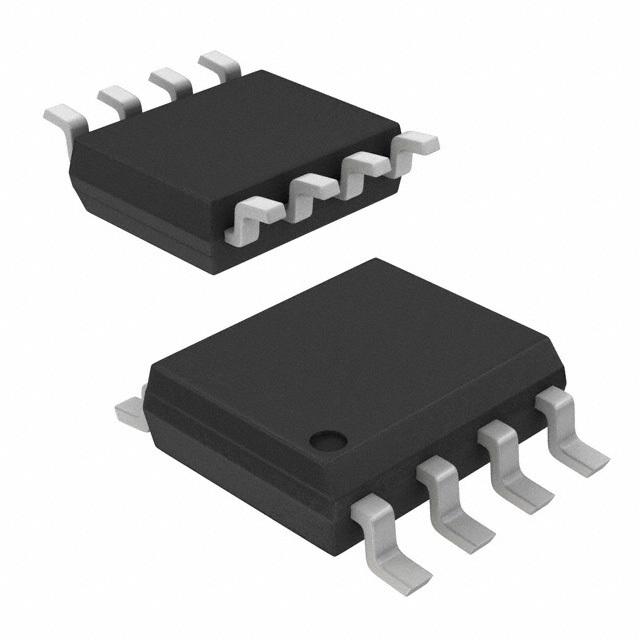

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AO4612
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW1359340
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N+P 60V 4.5A/3.2A
Documentation

Datasheet

AO4612 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AO4612 Specifications

Attribute	Attribute Value

Part Number	AO4612
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW1359340
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	1.28 W
Polarity	N+P
Power Dissipation	2 W
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	4.5A/3.2A
Rise Time	2.3 ns
Input Capacitance (Ciss)	540pF @30V(Vds)
Input Power (Max)	2 W
Fall Time	1.9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2 W
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

General Description
The AO4612 uses advanced trench technology MOSFETs to provide excellent RDS(ON)and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications.
Features
n-channel p-channel
VDS(V) = 60V -60V
ID= 4.5A (VGS=10V) -3.2A (VGS= -10V)
RDS(ON) RDS(ON)
< 56mΩ(VGS=10V) < 105mΩ(VGS= -10V)
< 77mΩ(VGS=4.5V) < 135mΩ(VGS= -4.5V)
100% Rg tested
