APT2012YC ,Based LED - Kingbright

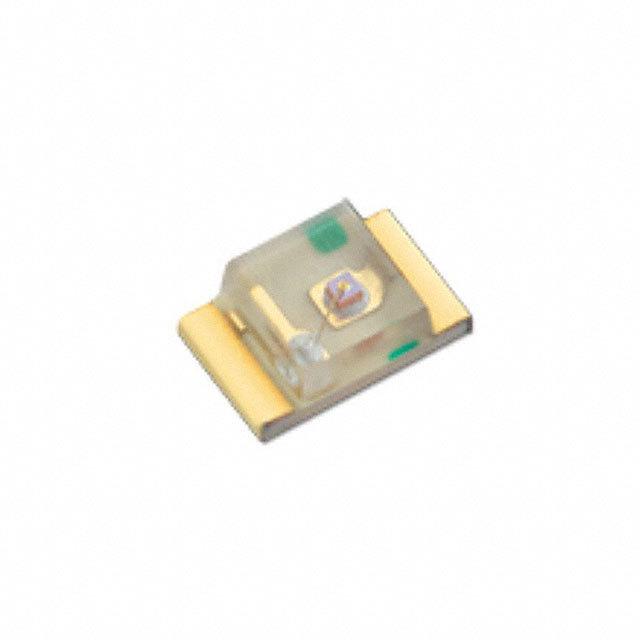

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

123 points

Part No

APT2012YC
Manufacturer

Kingbright
ChipWorker Part#

CW16421334
Category

Based LED
Package

0805
Description

APT2012YC Yellow LED, 588nm 2012 (0805) Clear, Rectangle Lens SMD package
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.05

Buy APT2012YC

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

APT2012YC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

APT2012YC Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	APT2012YC
Manufacturer	Kingbright
ChipWorker Part#	CW16421334
Category	Based LED
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Forward Voltage	2.1 V
Wavelength	588 nm
Luminous Intensity	8 mcd
Viewing Angle	120°
Peak Wavelength	590 nm
Test Current	20 mA
Forward Current	30 mA
Maximum Forward Voltage (Max)	2.5 V
Forward Current (Max)	30 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75 mW
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.75 mm
Color	Yellow
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

**Kingbright proudly introduce another breakthrough of Ultra thin SMD LED selections**
* **The new “Minikin-Air" series**
Using the latest AlGalnP and InGaN materials, Kingbright utilizes the most advanced technology to engineer the industry’s smallest and thinnest SMD LEDs – The Minikin-Air series.
As electronics shrink down to new levels of portability, manufacturers have figured out how to cram more high functioning components in a more compressed board area. The Minikin-Air series is the perfect selection for design engineers as it represents the smallest, thinnest, yet still powerful and robust LEDs. The Minikin-Air series is available in two different package types and both are featured as industry’s thinnest SMD LED – 0.2mm in thickness (height). It is only 1⁄4 of total thickness compared to conventional 0603 SMD LEDs and reduces the mounting area by more than 50%.
The top emitting package (APG1005) is the industry standard 0402 and the right angle package (APGA1602) is astonishingly small, measuring at only 1.6mm x 0.9mm x 0.2mm. The Minikin-Air series is available in Blue, True Green, Amber, Orange, and Red. The lightweight and miniaturization of the physical size of these ultra thin SMD LEDs make them optimal for mobile applications or any design with a space constraint. In compliance to RoHS and REACH regulations, both packages are compatible with automated placement equipment.
**Features:**
* 0.2mm in total thickness
* Industry’s thinnest SMD LED
* Available in Blue, True Green, Amber, Orange and Red.
* Top emitting, chip-type SMD LED 1.0mm x 0.5mm x 0.2mm (0402 package).
* Right angle, chip-type SMD LED 1.6mm x 0.9mm x 0.2mm.
* High intensity output – power consumption as low as 1mA.
* Ideal for portable devices, mobile consumer electronics and industrial handheld devices, backlighting and indicator applications.
