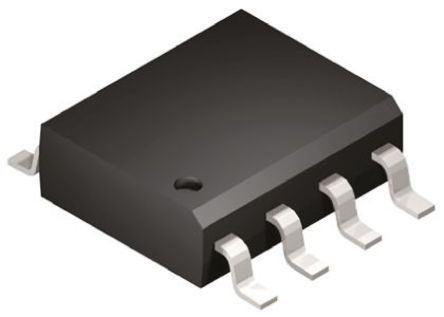

AT24C02D-SSHM-T ,EEPROM IC Chip - ATMEL

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

163 points

Part No

AT24C02D-SSHM-T
Manufacturer

ATMEL
ChipWorker Part#

CW16412765
Category

EEPROM IC Chip
Package

SOIC-8
Description

EEPROM Serial-2Wire 2Kbit 256 x 8 1.8V/2.5V/3.3V 8Pin SOIC T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

713 pcs In Stock
Estimated Price

$ 0.42

Buy AT24C02D-SSHM-T

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AT24C02D-SSHM-T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AT24C02D-SSHM-T Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AT24C02D-SSHM-T
Manufacturer	ATMEL
ChipWorker Part#	CW16412765
Category	EEPROM IC Chip
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	1 MHz
Operating Voltage	1.7V ~ 3.6V
Supply Current	1 mA
Number of Positions	8 Position
Clock Speed	1 MHz
Access Time	4.5 μs
Memory Size	250 B
Access Time(Max)	450 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.7 V
	expand all
Size-Height	1.48 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

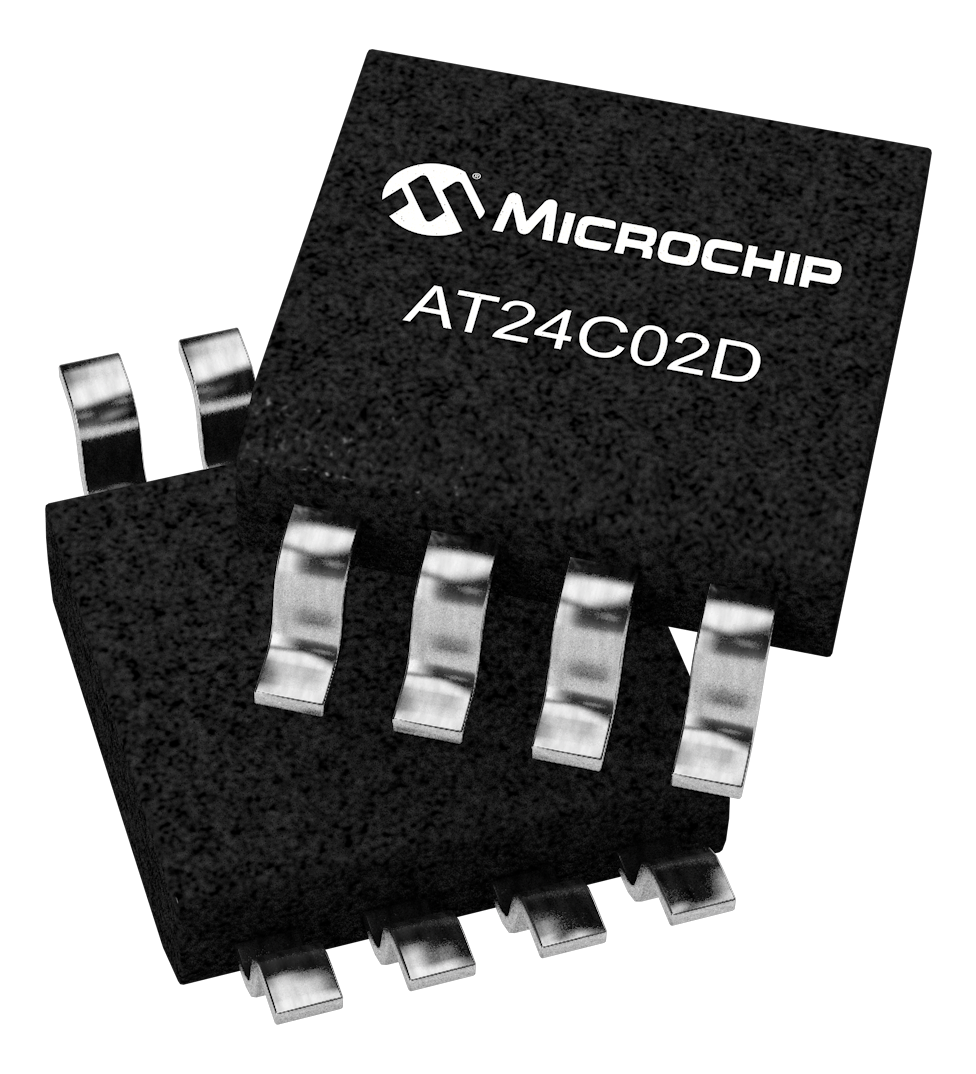

The AT24C02D-SSHM-T is a 2048-bit serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 256 words of 8-bit each. The device cascadable feature allows up to eight devices to share a common 2-wire bus. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
I²C-compatible (2-wire) serial interface
Schmitt trigger, filtered inputs for noise suppression
Bidirectional data transfer protocol
Write protect pin for full array hardware data protection
Ultralow active current and standby current
8-byte page write mode - partial page writes allowed
Random and sequential read modes
Self-timed write cycle within 5ms maximum
High reliability
Endurance - 1000000 write cycles
Data retention - 100 years
Green product and no Sb/Br
