ATV212HD18N4 - Schneider Electric

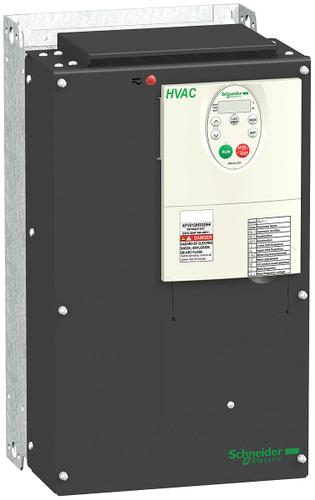

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ATV212HD18N4
Manufacturer

Schneider Electric
ChipWorker Part#

CW90800166
Category

Motors, Drive
Description

AC Variable Frequency Drive; 380-480VAC; 3P; 25HP
Documentation

Datasheet

ATV212HD18N4 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ATV212HD18N4 Specifications

Attribute	Attribute Value

Part Number	ATV212HD18N4
Manufacturer	Schneider Electric
ChipWorker Part#	CW90800166
Category	Motors, Drive
Documentation	Datasheet
Mounting Style	Panel
Frequency	0.5Hz ~ 200Hz
Current Rating	37 A
Power Rating	18.5 kW
Output Current	37.0 A
Supply Voltage	480 V
Supply Voltage (Max)	480 VAC
Supply Voltage (Min)	380 VAC
	expand all
RoHS	RoHS Compliant

Product Description

The Altivar 212 drive is intended for use with three-phase asynchronous motors for variable torque pump and fan applications. The Altivar 212 drive includes 3 logic inputs, 2 analog inputs, 1 analog output and 2 relay outputs (with 1 NO and 1 NO/NC contacts). It includes integrated 4 digit, 7 segment LED dispay with 7 button keypad, as well as RJ45 Modbus™ port, plus a 4 screw removable terminal block for software selectable BACnet, Modbus, METASYS N2 or APOGEE P1 communication protocols. LonWorks is available in an option card.
