AWM2100V ,Flow Sensor - Honeywell

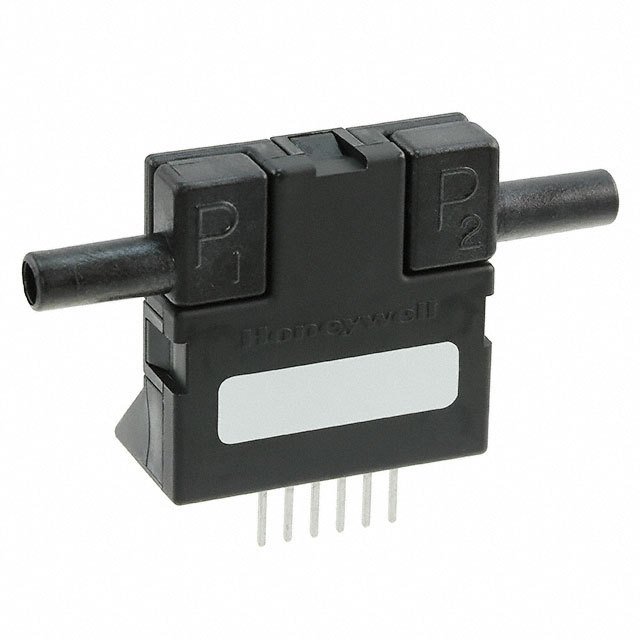

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
173 points
-
Part NoAWM2100V
-
ManufacturerHoneywell
-
ChipWorker Part#CW979647
-
CategoryFlow Sensor
-
Package200
-
DescriptionDry Gas 15V dc Sensor/Switch without Indicator, 25psi Pressure, +/-200 sccm
-
DocumentationDatasheet
-
Ships fromMoscow
-
НаличиеIn Stock
-
Estimated Price$ 66.27
Payment Methods and Delivery
{{ estimate }}
Buy AWM2100V
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
AWM2100V Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
AWM2100V Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | AWM2100V | |
| Manufacturer | Honeywell | |
| ChipWorker Part# | CW979647 | |
| Category | Flow Sensor | |
| Documentation | Datasheet | |
| Mounting Style | Screw | |
| Number of Pins | 6 Pin | |
| Case/Package | 200 | |
| Supply Voltage (DC) | 8V ~ 15V | |
| Output Voltage | 30 mV | |
| Power Consumption | 30 mW | |
| Output Voltage (Max) | 0.03 V | |
| Operating Temperature (Max) | 85 ℃ | |
| Operating Temperature (Min) | -25 ℃ | |
| Supply Voltage | 15 VDC | |
| Input Voltage | 8V ~ 15V | |
| expand all | ||
| Size-Height | 31.5 mm | |
| Material | Plastic | |
| Weight | 10.8 g | |
| Operating Temperature | -25℃ ~ 85℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Bulk | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| REACH SVHC Compliance Edition | 2014/06/16 | |
| HTS Code | 9026802000 | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- The AWM2100V is a Microbridge Mass Airflow Sensor, passive device comprised of two Wheatstone bridges. The heater control circuit is required for operation per specifications. The sensing bridge supply circuit is also required for operation per specifications. The differential amplifier is an useful interface for the sensing bridge. It can be used to introduce gain and to voltage offsets to the sensor output.
- Bidirectional sensing capability
- Actual mass air flow sensing
- Low differential pressure sensing
- Unamplified (mV) signal conditioning
- 30mVDC at 100 SCCM output voltage at trim point
- Straight port style
- ±0.20mVDC null shift over temperature
- ±2.5% reading output shift over temperature
- 5.0 SLPM/s flow rate change
- ±0.35% reading repeatability
- ±1mVDC null offset
- 5kR sensor resistance
- 0.6mA maximum sensor current
