BCR48PN - Infineon

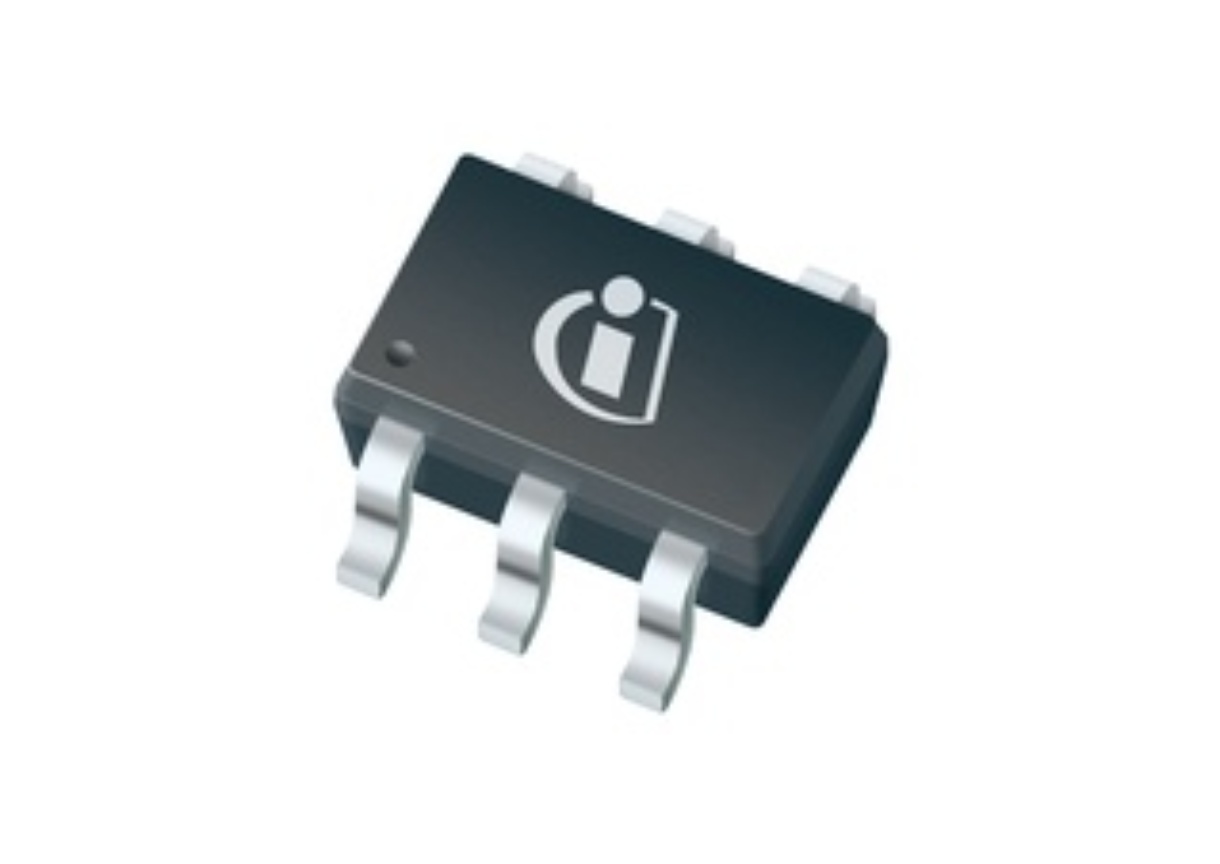

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BCR48PN
Manufacturer

Infineon
ChipWorker Part#

CW85047533
Package

SOT-363
Description

SOT-363 NPN+PNP 50V 70mA/100mA
Documentation

Datasheet

BCR48PN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BCR48PN Specifications

Attribute	Attribute Value

Part Number	BCR48PN
Manufacturer	Infineon
ChipWorker Part#	CW85047533
Documentation	Datasheet
Case/Package	SOT-363
Polarity	NPN+PNP
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	70mA/100mA
	expand all
Product Lifecycle Status	End of Life
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Switching circuit, inverter, interface circuit, driver circuit
Two (galvanic) internal isolated NPN/PNP Transistors in one package
Built in bias resistor
NPN: R1= 47k, R2= 47k
PNP: R1= 2.2k, R2= 47k
