BLM18KG700TH1D - muRata

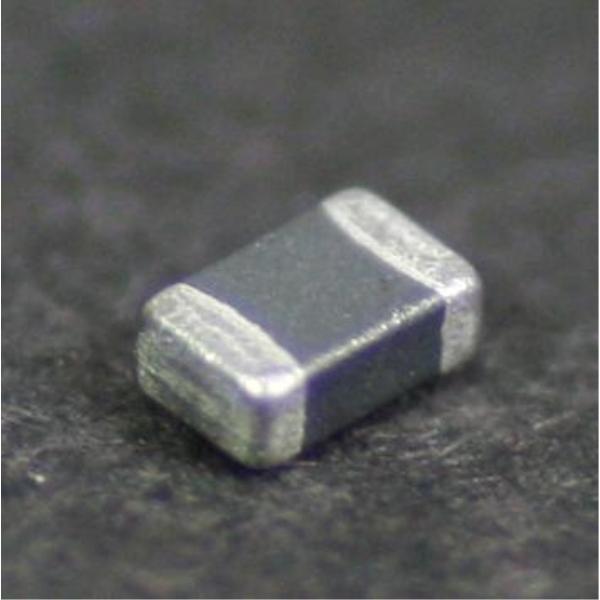

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BLM18KG700TH1D
Manufacturer

muRata
ChipWorker Part#

CW47522004
Category

RFI Shielding
Package

0603
Description

Ferrite Beads Multi-Layer Power 70Ω 25% 100MHz 3.5A 22mOhm DCR 0603 Automotive T/R
Documentation

Datasheet

BLM18KG700TH1D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BLM18KG700TH1D Specifications

Attribute	Attribute Value

Part Number	BLM18KG700TH1D
Manufacturer	muRata
ChipWorker Part#	CW47522004
Category	RFI Shielding
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	0603
Number of Circuits	1 Circuit
Resistance	70.0 Ω
Impedance	70.0 Ω
Test Frequency	100 MHz
DC Resistance (DCR)	0.022 Ω
Current Rating (Max)	3.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	22 mΩ
	expand all
Size-Length	1.60 mm
Size-Width	800 µm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

70 Ohms @ 100MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 3.5A 22mOhm
