BPV22F - VISHAY

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BPV22F
Manufacturer

VISHAY
ChipWorker Part#

CW49798313
Package

Radial, Side View
Description

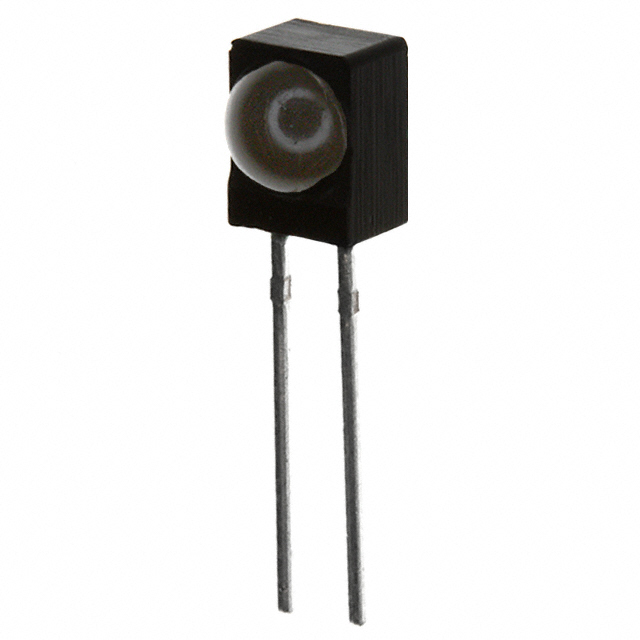

Photodiode PIN Chip 950nm 0.6A/W Sensitivity 2Pin
Documentation

Datasheet

BPV22F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BPV22F Specifications

Attribute	Attribute Value

Part Number	BPV22F
Manufacturer	VISHAY
ChipWorker Part#	CW49798313
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Side View
Number of Positions	2 Position
Forward Voltage	1.3 V
Wavelength	950 nm
Viewing Angle	120°
Peak Wavelength	950 nm
Power Dissipation	215 mW
Rise Time	100 ns
Reverse Breakdown Voltage	60 V
Maximum Forward Voltage (Max)	1.3 V
Fall Time	100 ns
Fall Time (Max)	100 ns
Fall Time (Max)	100 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	215 mW
	expand all
Size-Length	4.5 mm
Size-Width	5 mm
Size-Height	6 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The BPV22F is a Silicon PIN Photodiode with high speed and high radiant sensitivity in a black, plastic package with side view lens and daylight blocking filter. Filter bandwidth is matched with 900 to 950nm IR emitters. The lens achieves 80% of sensitivity improvement in comparison with flat package. It is suitable for high speed detector for infrared radiation, infrared remote control and free air data transmission systems, e.g. in combination with TSALxxxx series IR emitters.
Side view and leaded package
7.5mm² Radiant sensitive area
High radiant sensitivity
Daylight blocking filter matched with 940nm emitters
Fast response time
ϕ = ±60° Angle of half sensitivity
