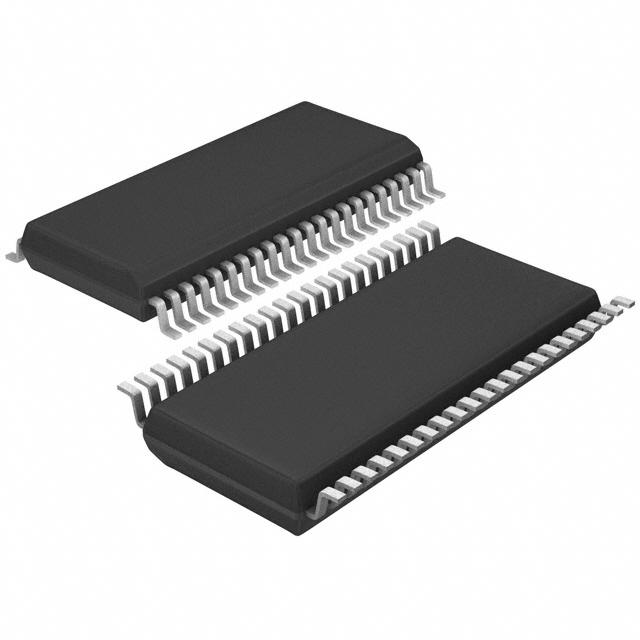

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

29 points

Part No

BQ77PL900
Manufacturer

TI
ChipWorker Part#

CW392832800
Description

Five to Ten Series Cell Lithium-Ion or Lithium-Polymer Battery Protector and Analog Front End
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy BQ77PL900

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BQ77PL900 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BQ77PL900 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BQ77PL900
Manufacturer	TI
ChipWorker Part#	CW392832800
Documentation	Datasheet
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The bq77PL900 is a five to ten series cell lithium-ion battery pack protector. The integrated I2C communications interface allows the bq77PL900 also to be as an analog front end (AFE) for a Host controller. Two LDOs, one 5 V/25 mA and one 3.3 V/25 mA, are also included and may be used to power a host controller or support circuitry.
The bq77PL900 integrates a voltage translation system to extract battery parameters such as individual cell voltages and charge/discharge current. Variables such as voltage protection thresholds and detection delay times can be programmed by using the internal EEPROM.
The bq77PL900 can act as a stand-alone self-contained battery protection system (stand-alone mode). It can alternatively be combined with a host microcontroller to offer fuel gauge or other battery management capabilities to the host system (host-control mode).
The bq77PL900 provides full safety protection for overvoltage, undervoltage, overcurrent in discharge, and short circuit in discharge conditions. When the EEPROM programmable safety thresholds are reached, the bq77PL900 turns off the FET drive autonomously. No external components are needed to configure the protection features.
The analog front end (AFE) outputs allow a host controller to observe individual cell voltages and charge/discharge currents. The host controller"s analog-to-digital converter connects to the bq77PL900 to acquire these values.
Cell balancing can be performed autonomously, or the host controller can activate it individually via a cell bypass path integrated into the bq77PL900. Internal control registers accessible via the I2C interface configure this operation. The maximum balancing bypass current is set via an external series resistor and the internal FET-on resistance (typically 400 ). Optionally, external bypass cell balance FETs can be used for increased current capability.
5, 6, 7, 8, 9, or 10 Series-Cell Primary Protection
PMOS FET Drive for Charge and Discharge FETs
Capable of Operation with 1-m Sense Resistor
Supply Voltage Range from 7 V to 50 V
Low Supply Current of 450 µA Typical
Integrated 5 V 25-mA LDO
Integrated 3.3 V 25-mA LDO
Stand-Alone Mode
Pack Protection Control and Recovery
Individual Cell Monitoring
Integrated Cell Balancing
Programmable Threshold and Delay Time for OvervoltageUndervoltage Overcurrent in Discharge Short Circuit in Discharge
Fixed Overtemperature Protection
Host Control Mode
I2C Interface to Host Controller
Analog Interface for Host Cell Measurement and System Charge/Discharge Current
Host-Controlled Protection Recovery
Host-Controlled Cell Balancing
APPLICATIONS
Cordless Power Tools
Power Assisted Bicycle/Scooter
Uninterruptible Power Supply (UPS) Systems
Medical Equipment
Portable Test Equipment
