BQ77PL900DL ,Battery Management IC - TI

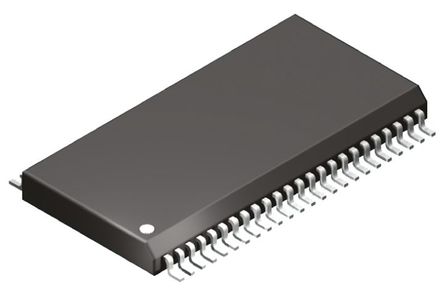

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

98 points

Part No

BQ77PL900DL
Manufacturer

TI
ChipWorker Part#

CW26658761
Category

Battery Management IC
Package

SSOP-48
Description

Lithium Ion Protection 5-10 cell Li-ion Battery protection & AFE Battery Protection Li-Ion/Li-Pol 1.2V/0.975V 48Pin SSOP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 5.42

Buy BQ77PL900DL

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BQ77PL900DL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BQ77PL900DL Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BQ77PL900DL
Manufacturer	TI
ChipWorker Part#	CW26658761
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	SSOP-48
Number of Positions	48 Position
Power Dissipation	1388 mW
Output Voltage (Max)	45 V
Output Voltage (Min)	1.2 V
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1388 mW
Supply Voltage	7V ~ 50V
Supply Voltage (Max)	50 V
Supply Voltage (Min)	7 V
	expand all
Size-Length	16 mm
Size-Width	7.59 mm
Size-Height	2.79 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The BQ77PL900DL is a five to ten series cell Lithium-ion Battery Pack Protector. The integrated I²C communications interface allows the protector also to be as an analogue front end (AFE) for a Host controller. The BQ77PL900 integrates a voltage translation system to extract battery parameters such as individual cell voltages and charge/discharge current. Variables such as voltage protection thresholds and detection delay times can be programmed by using the internal EEPROM. The battery pack protector can act as a stand-alone self-contained battery protection system (stand-alone mode). It can alternatively be combined with a host microcontroller to offer fuel gauge or other battery management capabilities to the host system (host-control mode). The protector provides full safety protection for overvoltage, under-voltage, over-current in discharge and short-circuit in discharge conditions. No external components are needed to configure the protection features.
PMOS FET Drive for charge and discharge FETs
Pack protection control and recovery
Individual cell monitoring
Integrated cell balancing
Fixed over-temperature protection
I²C interface to host controller
Analogue interface for host cell measurement and system charge/discharge current
Host-controlled protection recovery
Host-controlled cell balancing
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
