BSS306NH6327XTSA1 - Infineon

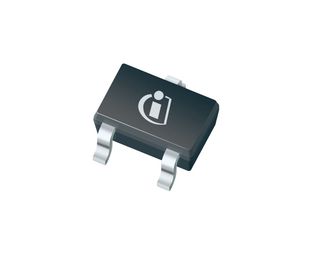

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSS306NH6327XTSA1
Manufacturer

Infineon
ChipWorker Part#

CW4430450
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

SOT-23 N-CH 30V 2.3A
Documentation

Datasheet

BSS306NH6327XTSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSS306NH6327XTSA1 Specifications

Attribute	Attribute Value

Part Number	BSS306NH6327XTSA1
Manufacturer	Infineon
ChipWorker Part#	CW4430450
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Power Rating	0.5 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.044 Ω
Polarity	N-Channel
Power Dissipation	500 mW
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	2.3A
Rise Time	2.3 ns
Input Capacitance (Ciss)	207pF @15V(Vds)
Fall Time	1.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BSS306N H6327 is a N-channel OptiMOS™2 Small Signal Transistor for DC-to-DC converters, eMobility, on-board charger and telecom applications.
Enhancement-mode
Avalanche rated
Logic level (4.5V rated)
Halogen-free
