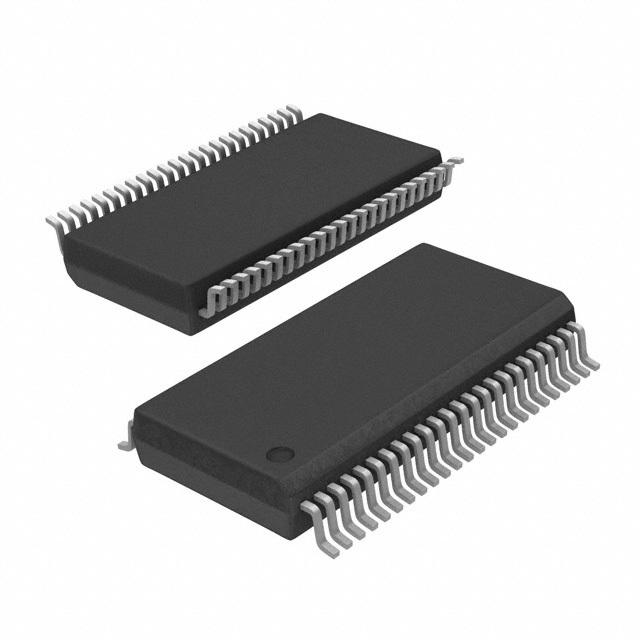

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoDAC7644E
-
ManufacturerTI
-
ChipWorker Part#CW21812240
-
CategoryDigital to Analog, DAC IC
-
PackageSSOP-48
-
DescriptionTEXAS INSTRUMENTS DAC7644E Digital to Analog Converter, 16Bit, 100KSPS, Parallel, ± 4.75V to ± 5.25V, SSOP, 48Pins
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
DAC7644E Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
DAC7644E Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | DAC7644E |
| Manufacturer | TI |
| ChipWorker Part# | CW21812240 |
| Category | Digital to Analog, DAC IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | SSOP-48 |
| Supply Voltage (DC) | -5.00 V, 5.00 V (max) |
| Number of Outputs | 4 Output |
| Supply Current | 1.50 mA |
| Number of Channels | 4 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 0.02 W |
| Sample Rate | 100 ksps |
| Power Consumption | 7.5 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 20 mW |
| Number of DACs | 4 DAC |
| expand all | |
| Size-Height | 2.59 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
Product Description
- The DAC7644 is a 16-bit, quad voltage output digital-to-analog converter with guaranteed 15-bit monotonic performance over the specified temperature range. It accepts 16-bit parallel input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a readback mode of the internal input registers. Programmable asynchronous reset clears all registers to a mid-scale code of 8000H or to a zero-scale of 0000H. The DAC7644 can operate from a single +5V supply or from +5V and 5V supplies.
- Low power and small size per DAC make the DAC7644 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The DAC7644 is available in a 48-lead SSOP package and offers guaranteed specifications over the 40°C to +85°C temperature range.
