FDD8770 - Fairchild

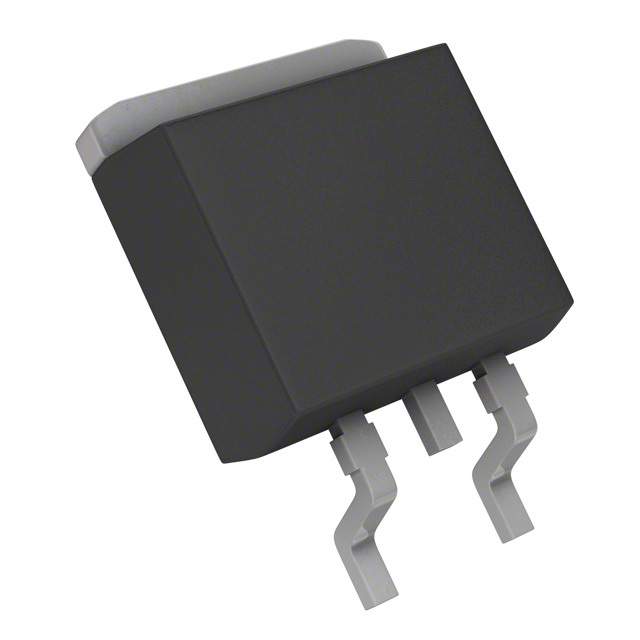

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDD8770
Manufacturer

Fairchild
ChipWorker Part#

CW69359307
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

Trans MOSFET N-CH 25V 35A 3Pin(2+Tab) TO-252AA T/R
Documentation

Datasheet

FDD8770 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDD8770 Specifications

Attribute	Attribute Value

Part Number	FDD8770
Manufacturer	Fairchild
ChipWorker Part#	CW69359307
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	25.0 V
Current Rating	35.0 A
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0048 Ω
Polarity	N-Channel
Power Dissipation	115 W
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	25 V
Breakdown Voltage (Drain to Source)	25 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	35.0 A
Rise Time	12 ns
Input Capacitance (Ciss)	3720pF @13V(Vds)
Input Power (Max)	115 W
Fall Time	25 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	115W (Tc)
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.39 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
