2N7002KT1G - ON Semiconductor

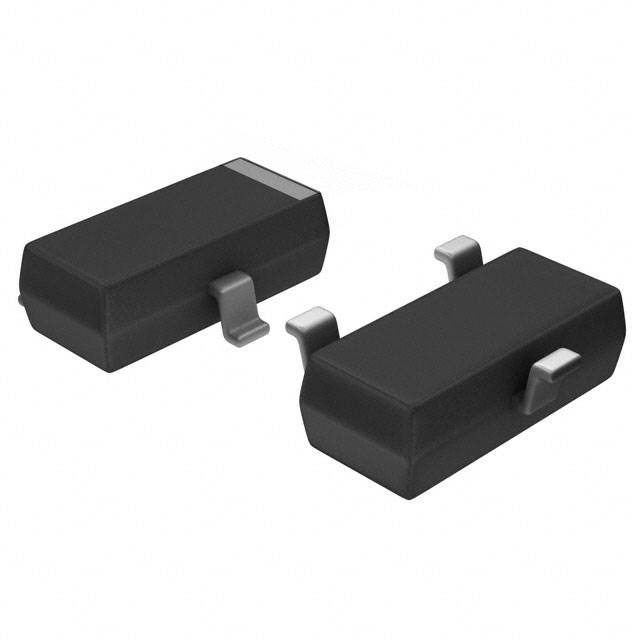

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part No2N7002KT1G
-
ManufacturerON Semiconductor
-
ChipWorker Part#CW39552
-
CategoryMOSFET, MOSFET Transistor
-
PackageSOT-23-3
-
DescriptionSOT-23 N-CH 60V 0.38A
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
2N7002KT1G Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
2N7002KT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | 2N7002KT1G |
| Manufacturer | ON Semiconductor |
| ChipWorker Part# | CW39552 |
| Category | MOSFET, MOSFET Transistor |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Halogen Free Status | Halogen Free |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 1.19 Ω |
| Polarity | N-Channel |
| Power Dissipation | 420 mW |
| Threshold Voltage | 2.3 V |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 380 mA |
| Rise Time | 9 ns |
| Input Capacitance (Ciss) | 24.5pF @20V(Vds) |
| Input Power (Max) | 300 mW |
| Fall Time | 29 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 350mW (Ta) |
| expand all | |
| Size-Length | 3.04 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1.01 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
Product Description
- The 2N7002KT1G is a N-channel Small Signal MOSFET offers 60V drain source voltage and 320mA steady state drain current. It is suitable for low side load switch, level shift circuits, DC-to-DC converter, portable DSC and PDA applications.
- Low RDS (ON)
- Surface-mount package
- Halogen-free
- ESD Protected
- -55 to 150°C Operating junction temperature range
