FGH20N60SFDTU - Fairchild

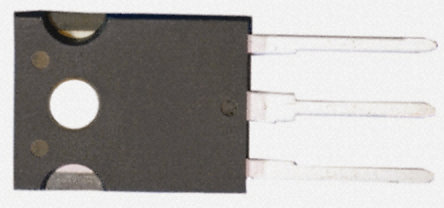

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FGH20N60SFDTU
Manufacturer

Fairchild
ChipWorker Part#

CW72159030
Category

IGBT Transistor, IGBT Module
Package

TO-247-3
Description

Trans IGBT Chip N-CH 600V 40A 165000mW 3Pin(3+Tab) TO-247AB Rail
Documentation

Datasheet

FGH20N60SFDTU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FGH20N60SFDTU Specifications

Attribute	Attribute Value

Part Number	FGH20N60SFDTU
Manufacturer	Fairchild
ChipWorker Part#	CW72159030
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Power Dissipation	165 W
Rise Time	16 ns
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	34 ns
Input Power (Max)	165 W
Fall Time	28 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	165 W
	expand all
Size-Length	15.6 mm
Size-Width	4.7 mm
Size-Height	20.6 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The FGH20N60SFDTU is a high speed novel Field Stop IGBT offers the optimum performance for solar inverter, UPS, welder and PFC applications where low conduction and switching losses are essential.
High current capability
High input impedance
2.2V @ IC = 20A Low saturation voltage
8µJ/A Fast switching
