FK3P02110L - Panasonic

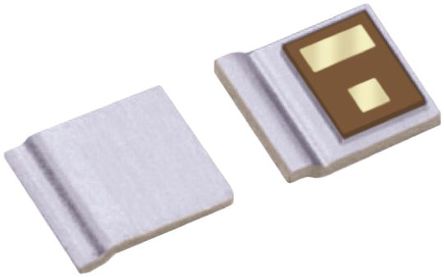

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FK3P02110L
Manufacturer

Panasonic
ChipWorker Part#

CW108222353
Category

MOSFET, MOSFET Transistor
Package

PMCP-1816-Z1
Description

PMCP N-CH 24V 6A
Documentation

Datasheet

FK3P02110L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FK3P02110L Specifications

Attribute	Attribute Value

Part Number	FK3P02110L
Manufacturer	Panasonic
ChipWorker Part#	CW108222353
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	PMCP-1816-Z1
Drain to Source Resistance (on) (Rds)	20 mΩ
Polarity	N-CH
Power Dissipation	200 mW
Threshold Voltage	1.4 V
Drain to Source Voltage (Vds)	24 V
Breakdown Voltage (Drain to Source)	24 V
Continuous Drain Current (Ids)	6A
Input Capacitance (Ciss)	1500pF @10V(Vds)
Fall Time	2.3 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	750 mW
	expand all
Size-Length	1.6 mm
Size-Width	1.8 mm
Size-Height	0.33 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Product Description

N-Channel 24V 3A (Ta) Surface Mount 3-PMCP
