FN3256H-25-33 ,Power Supply Filter - Schaffner

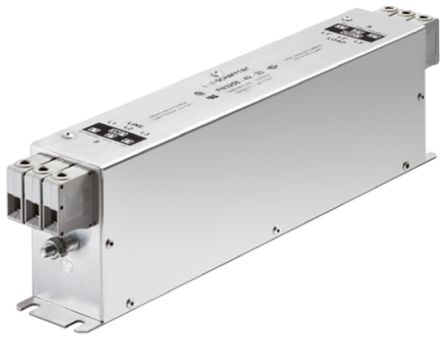

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
56 points
-
Part NoFN3256H-25-33
-
ManufacturerSchaffner
-
ChipWorker Part#CW51549826
-
CategoryPower Supply Filter
-
DescriptionPower Line Filter 0Hz to 60Hz 25A 520VAC Terminal Block Flange Mount
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие1 pcs In Stock
-
Estimated Price$ 137.67
Payment Methods and Delivery
{{ estimate }}
Buy FN3256H-25-33
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
FN3256H-25-33 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
FN3256H-25-33 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | FN3256H-25-33 | |
| Manufacturer | Schaffner | |
| ChipWorker Part# | CW51549826 | |
| Category | Power Supply Filter | |
| Documentation | Datasheet | |
| Mounting Style | Chassis | |
| Voltage Rating (AC) | 480 V | |
| Current Rating | 25 A | |
| Current Rating (Max) | 25 A | |
| Operating Temperature (Max) | 100 ℃ | |
| Operating Temperature (Min) | -25 ℃ | |
| Voltage Rating (Max) | 520 VAC | |
| Voltage Rating | 520 VAC | |
| expand all | ||
| Size-Length | 130 mm | |
| Size-Height | 85 mm | |
| Operating Temperature | -25℃ ~ 100℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Bulk | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance Edition | 2015/12/17 | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- Combining high attenuation performance with low leakage current and an extremely compact, light-weight design with a cubic shape, requiring minimum mounting space the FN3256 offers performance according to the machine tool standard EN50370-1. As a mains input filter for 3-phases + neutral line, the FN3256 ensures the compliance with the new product family standard for machine tools in mainly industrial environments EN50370-1, its use will also increase the conducted immunity of the entire installation significantly. The FN3256 provides the attenuation performance to meet the requirements of various machine tools with up to 8 driving axes with ~10 m of motor cable each. Designed for industrial equipment, machinery, machine tools and diverse process automation systems with 3-phase + neutral electricity supply. Further, these filters are suitable for power supplies, high-power office equipment and further applications, where efficient interference suppression on three-phases and the neutral line is required and where space is critical. Because of the very low leakage current, FN 3256 can even be used for some medical devices. Solid, touch-safe terminal blocks offering sufficient contacting cross section according to the EN60204-1 installation standard.
- * 3× 520 VAC Maximum Continuous Operating Voltage (480 VAC +10% Possible)
- * DC to 60 Hz Operating Frequency
- * High Potential Test Voltage: P→E 3000 VDC for 2 Seconds, P→P 2250 VDC for 2 Seconds
- * IP20 Protection
- * 4× Rated Current Overload Capability at Switch-On — 1.5× Rated Current for 1 Minute, Once Per Hour
- * –25°C to +100°C Operating Temperature Range
- * UL94V-2 or Better Flammability Rating
- * UL1283, CSA22.2 No. 8 1986, EN133‘200
- * >100,000 Hours MTBF @ 50°C/400 V (Mil-HB-217F)
- * Medical Version Available
