RC4136N - TI

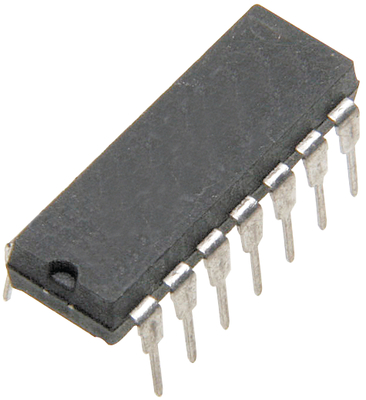

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoRC4136N
-
ManufacturerTI
-
ChipWorker Part#CW4604645
-
CategoryOperational Amplifier, OP Amp IC
-
PackageDIP-14
-
DescriptionTEXAS INSTRUMENTS RC4136N Operational Amplifier, Quad, 4 Amplifier, 3MHz, 1.7V/µs, ± 5V to ± 15V, DIP, 14Pins
-
DocumentationDatasheet
