FODM121 ,Optocoupler, Optoisolator - Fairchild

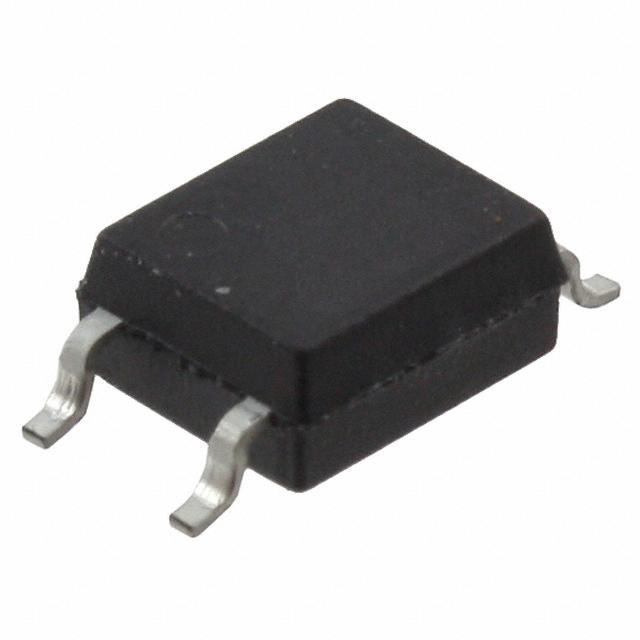

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

101 points

Part No

FODM121
Manufacturer

Fairchild
ChipWorker Part#

CW12536489
Category

Optocoupler, Optoisolator
Package

4-Mini-Flat
Description

FAIRCHILD SEMICONDUCTOR FODM121 Optocoupler, Transistor Output, 1Channel, SOP, 4Pins, 50mA, 3.75kV, 50%
Documentation

Datasheet
Ships from

Moscow
Наличие

232 pcs In Stock
Estimated Price

$ 0.23

Buy FODM121

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FODM121 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FODM121 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FODM121
Manufacturer	Fairchild
ChipWorker Part#	CW12536489
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	4-Mini-Flat
Rise/Fall Time	3 µs
Output Voltage	80.0 V
Number of Channels	1 Channel
Forward Voltage	1.3V (Max)
Input Current	50.0 mA
Isolation Voltage	3750 Vrms
Forward Current	50 mA
Output Voltage (Max)	80 V
Forward Current (Max)	50 mA
	expand all
Operating Temperature	-40℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

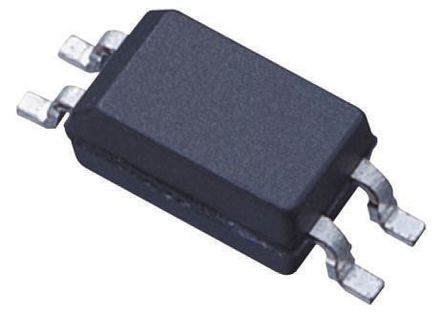

Similar & Replacement Parts

Similar products

Product Description

Description
The FODM124, FODM121 series, and FODM2701 consists of a gallium arsenide infrared emitting diode driving a phototransistor in a compact 4-pin mini-flat package. The lead pitch is 2.54mm. The FODM2705 consists of two gallium arsenide infrared emitting diodes connected in inverse parallel for AC operation.
Features
■More than 5mm creepage/clearance
■Compact 4-pin surface mount package (2.4mm maximum standoff height)
■Current Transfer Ratio in selected groups
DC Input:
FODM121: 50–600% FODM2701: 50–300%
FODM121A: 100–300% FODM124: 100% MIN
FODM121B: 50–150%
FODM121C: 100–200%
ACInput:
FODM2705: 50–300%
■Available in tape and reel quantities of 2500
■Applicable to Infrared Ray reflow (260°C max, 10 sec.)
