IM26TS - TE Connectivity

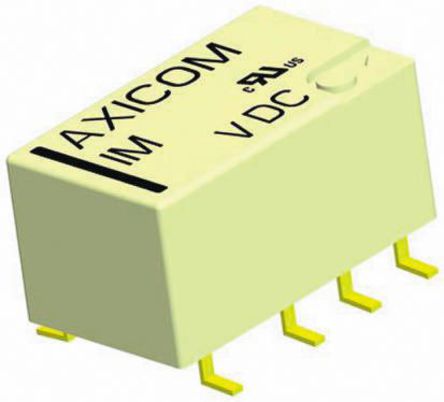

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IM26TS
Manufacturer

TE Connectivity
ChipWorker Part#

CW92203993
Category

Industrial Relay
Package

DIP
Description

Signal Relay 12VDC 2A DPDT (( 10mm 6mm 5.65mm)) Through Hole Automotive
Documentation

Datasheet

IM26TS Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IM26TS Specifications

Attribute	Attribute Value

Part Number	IM26TS
Manufacturer	TE Connectivity
ChipWorker Part#	CW92203993
Category	Industrial Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Frequency	900 MHz
Current Rating	2 A
Insulation Resistance	>1000 MΩ
Contact Resistance	50.0 mΩ
Power Consumption	50 mW
Coil Voltage	12 VDC
Coil Current	4.17 mA
Coil Power (DC)	50.0 mW
Coil Resistance	2.88 KΩ
Current Rating (Max)	2 A
Coil Voltage (DC)	12 V
Switching Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
Maximum Contact Resistance (Max)	<50 mΩ
	expand all
Size-Length	10 mm
Size-Height	5.65 mm
Contact Material	Gold Plating
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
HTS Code	8536410050
ECCN Code	EAR99

Product Description

IM Relay : Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm2. Switching current 2/5A, switching power 60W/62.5VA and switching voltage 220VDC/250VAC. Low coil power consumption, 140mW standard, 100mW for high sensitive version, 50mW for ultra high sensitive version and 100mW for bistable version. High dielectric and surge capability up to 2500Vrms between open contacts and 3000Vrms between coil and contacts. High mechanical shock resistance up to 300g functional.
