IPB123N10N3 G - Infineon

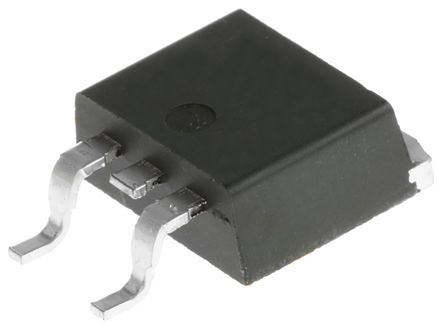

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPB123N10N3 G
Manufacturer

Infineon
ChipWorker Part#

CW40917232
Category

MOSFET, MOSFET Transistor
Package

TO-263-3
Description

Trans MOSFET N-CH 100V 58A 3Pin(2+Tab) TO-263
Documentation

Datasheet

IPB123N10N3 G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPB123N10N3 G Specifications

Attribute	Attribute Value

Part Number	IPB123N10N3 G
Manufacturer	Infineon
ChipWorker Part#	CW40917232
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0107 Ω
Polarity	N-Channel
Power Dissipation	94 W
Threshold Voltage	2.7 V
Drain to Source Voltage (Vds)	100 V
Rise Time	8 ns
Input Capacitance (Ciss)	2500pF @50V(Vds)
Fall Time	5 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	94W (Tc)
	expand all
Size-Length	10 mm
Size-Width	9.45 mm
Size-Height	4.4 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Summary of Features:
Excellent switching performance
World’s lowest R DS(on)
Very low Q g and Q gd
Excellent gate charge x R DS(on) product (FOM)
RoHS compliant-halogen free
MSL1 rated 2
Benefits:
Environmentally friendly
Increased efficiency
Highest power density
Less paralleling required
Smallest board-space consumption
Easy-to-design products
