AD9928 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD9928
Manufacturer	ADI
ChipWorker Part#	CW430834519
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant

Similar & Replacement Parts

Similar products

Product Description

Product Details

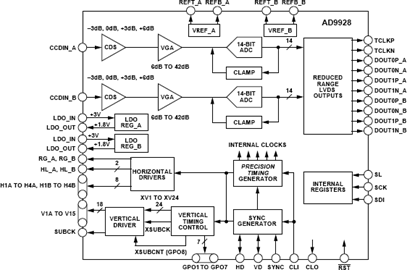

The AD9928 is a highly integrated CCD signal processor for digital still camera applications. It includes a dual analog front end with analog-to-digital conversion, combined with a full-function programmable timing generator and 18-channel vertical driver (V-driver) for a 2-channel output CCD. The timing generator is capable of supporting up to 24 vertical clock signals internally, and the on-chip V-driver supports up to 18 high voltage outputs. A _Precision Timing_™ core allows adjustment of high speed clocks with approximately 390 ps resolution at 40 MHz operation. The AD9928 also contains eight general-purpose outputs, which can be used for shutter and system functions.
Each analog front end includes black level clamping, CDS, VGA, and a 14-bit ADC. The timing generator provides all the necessary CCD clocks: RG, H-clocks, V-clocks, sensor gate pulses, substrate clock, and substrate bias control.
The AD9928 is specified over an operating temperature range of –25°C to +85°C.
**Applications**
Digital still cameras
Medical imaging
Industrial cameras
### Features and Benefits
Registers similar to AD9920A and AD9990
Timing generator with 18-channel V-driver
Serial data output with reduced range LVDS interface
1.8 V dual AFE core
Internal LDO regulators for compatibility with 3 V systems
Correlated double sampler (CDS) with −3 dB, 0 dB, +3 dB, and +6 dB gain
6 dB to 42 dB, 10-bit variable gain amplifier (VGA)
14-bit, 40 MHz analog-to-digital converter (ADC)
Please see data sheet for additional features.
