IPD50N06S4L-08 ,MOSFET, MOSFET Transistor - Infineon

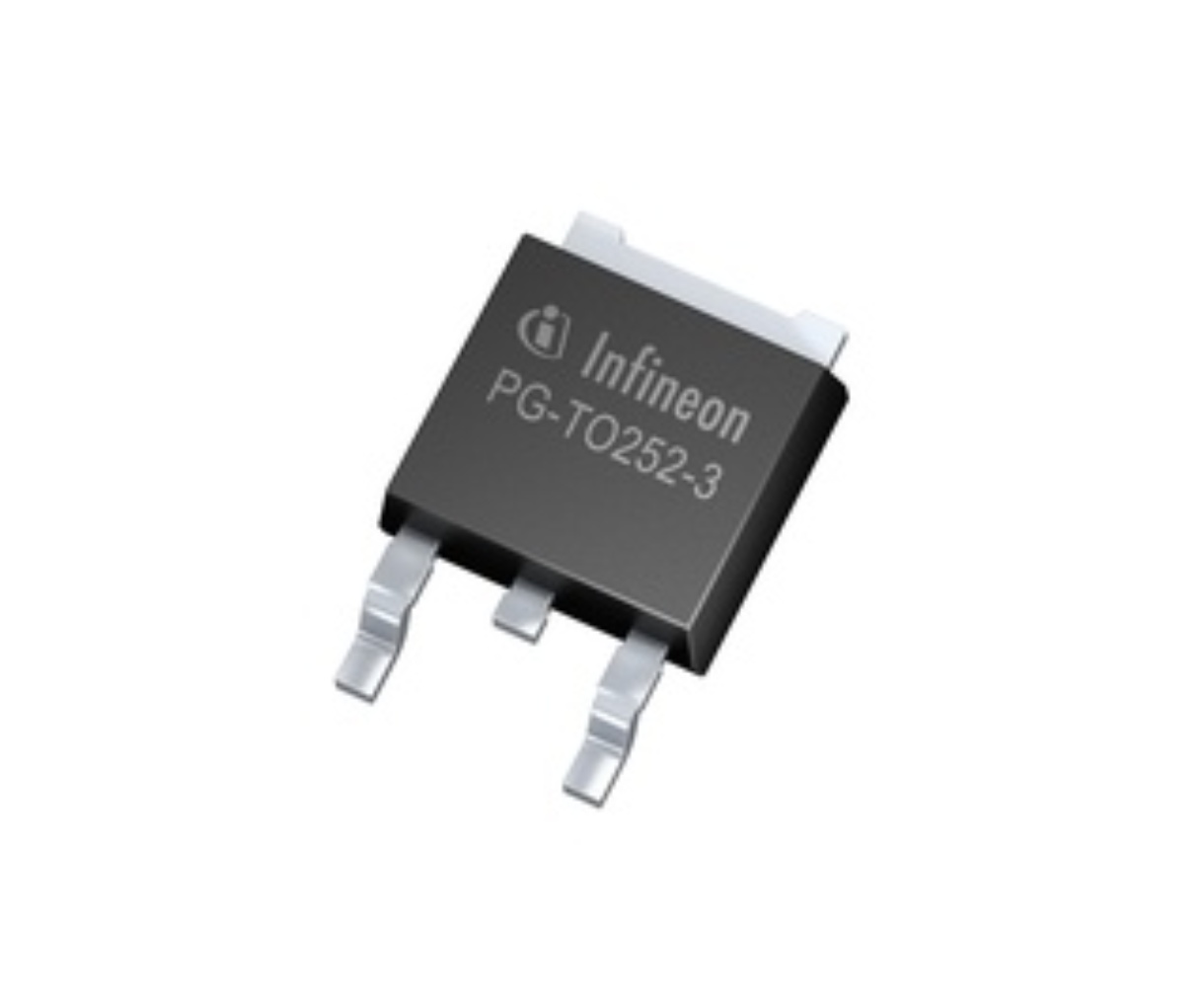

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

105 points

Part No

IPD50N06S4L-08
Manufacturer

Infineon
ChipWorker Part#

CW14645000
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 60V 50A
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.39

Buy IPD50N06S4L-08

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IPD50N06S4L-08 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IPD50N06S4L-08 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IPD50N06S4L-08
Manufacturer	Infineon
ChipWorker Part#	CW14645000
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Channels	1 Channel
Polarity	N-CH
Power Dissipation	71 W
Threshold Voltage	1.2 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	50A
Rise Time	2 ns
Input Capacitance (Ciss)	4780pF @25V(Vds)
Input Power (Max)	71 W
Fall Time	8 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	71000 mW
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Summary of Features:
N-channel - Enhancement mode
AEC Q101 qualified
MSL1 up to 260°C peak reflow
175°C operating temperature
Green Product (RoHS compliant)
100% Avalanche tested
Ultra low RDSon
Benefits:
world"s lowest RDS at 60V (on)
highest current capability
lowest switching and conduction power losses for highest thermal efficiency
robust packages with superior quality and reliability
Optimized total gate charge enables smaller driver output stages
