IPD50R500CE - Infineon

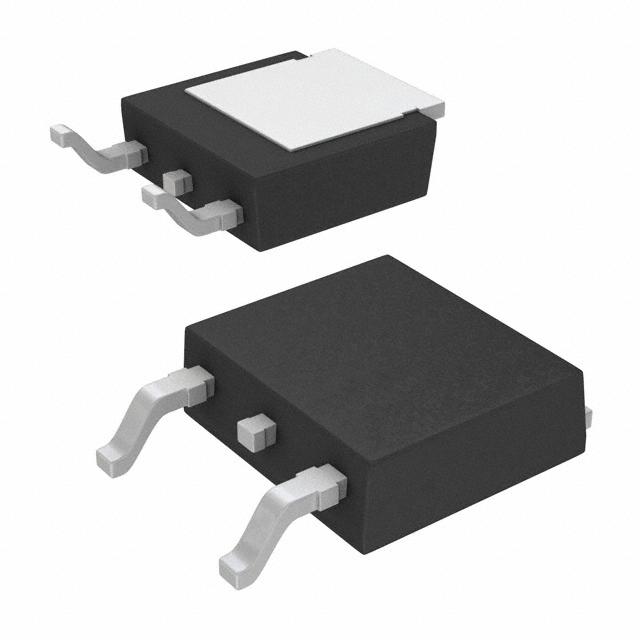

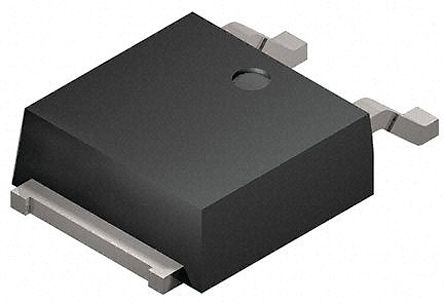

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPD50R500CE
Manufacturer

Infineon
ChipWorker Part#

CW64514088
Category

MOSFET, MOSFET Transistor
RoHS

Lead free / RoHS Compliant
Description

DPAK N-CH 500V 7.6A
Documentation

Datasheet

IPD50R500CE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPD50R500CE Specifications

Attribute	Attribute Value

Part Number	IPD50R500CE
Manufacturer	Infineon
ChipWorker Part#	CW64514088
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Polarity	N-CH
Power Dissipation	57 W
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	7.6A
Rise Time	5 ns
Input Capacitance (Ciss)	433pF @100V(Vds)
Input Power (Max)	57 W
Fall Time	12 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	57 W
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.41 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Summary of Features:
Reduced energy stored in output capacitance (E oss)
High body diode ruggedness
Reduced reverse recovery charge (Q rr )
Reduced gate charge (Q g )
Benefits:
Easy control of switching behavior
Better light load efficiency compared to previous CoolMOS™ generations
Cost attractive alternative compared to standard MOSFETs
Outstanding quality and reliability of CoolMOS™ technology
Target Applications:
Consumer
Lighting
PC silverbox
