IR2101PBF - Infineon

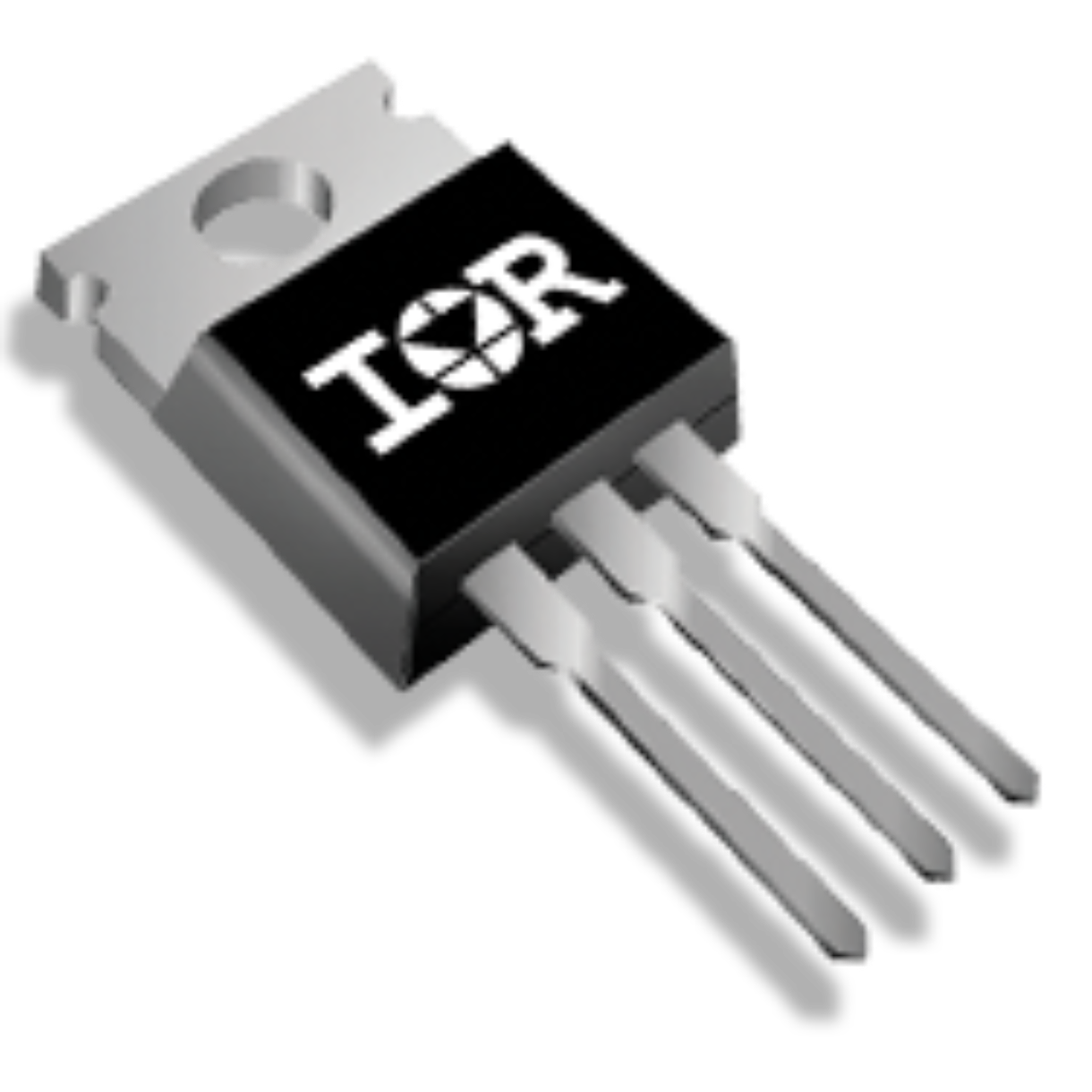

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IR2101PBF
Manufacturer

Infineon
ChipWorker Part#

CW2186803
Category

FET Driver
Package

PDIP-8
Description

MOSFET DRVR 600V 0.36A 2Out Hi/Lo Side Non-Inv 8Pin PDIP
Documentation

Datasheet

IR2101PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IR2101PBF Specifications

Attribute	Attribute Value

Part Number	IR2101PBF
Manufacturer	Infineon
ChipWorker Part#	CW2186803
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	10.0V (min)
Operating Voltage	10V ~ 20V
Power Rating	1 W
Rise/Fall Time	100ns, 50ns
Number of Outputs	2 Output
Output Voltage	620 V
Output Current	210 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1000 mW
Quiescent Current	150 µA
Rise Time	100 ns
Fall Time	50 ns
Fall Time (Max)	90 ns
Fall Time (Max)	170 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	expand all
Size-Length	10.92 mm
Size-Width	7.11 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The IR2101PBF is a high voltage high speed power MOSFET and IGBT Driver with independent high and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technology enables ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output and down to 3.3V logic. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive a N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.
DV/DT Immune
Under-voltage lockout
Matched propagation delay for both channels
Outputs in phase with inputs
