IR21084 - International Rectifier

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IR21084
Manufacturer

International Rectifier
ChipWorker Part#

CW300260048
Category

FET Driver
Description

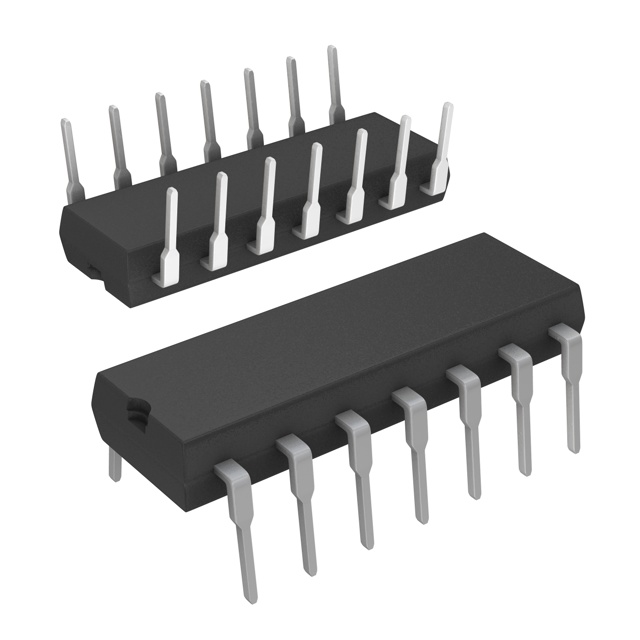

Half Bridge Driver, Soft Turn-On, All High Voltage Pins on One Side, Separate High and Low Side Inputs, Programmable 0.5-5us Deadtime in a 14Pin DIP package
Documentation

Datasheet

IR21084 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IR21084 Specifications

Attribute	Attribute Value

Part Number	IR21084
Manufacturer	International Rectifier
ChipWorker Part#	CW300260048
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP
Supply Voltage (DC)	20.0V (max)
Number of Outputs	2 Output
Output Voltage	≤20.0 V
Part Family	IR21084
	expand all
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Description
The IR2108(4)(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.
Features
•Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage dV/dt immune
•Gate drive supply range from 10 to 20V
•Undervoltage lockout for both channels
•3.3V, 5V and 15V input logic compatible
•Cross-conduction prevention logic
•Matched propagation delay for both channels
•High side output in phase with HIN input
•Low side output out of phase with LIN input
•Logic and power ground +/- 5V offset.
•Internal 540ns dead-time, and programmable up to 5us with one external RDTresistor (IR21084)
•Lower di/dt gate driver for better noise immunity
•Available in Lead-Free
