IRF5852TRPBF - International Rectifier

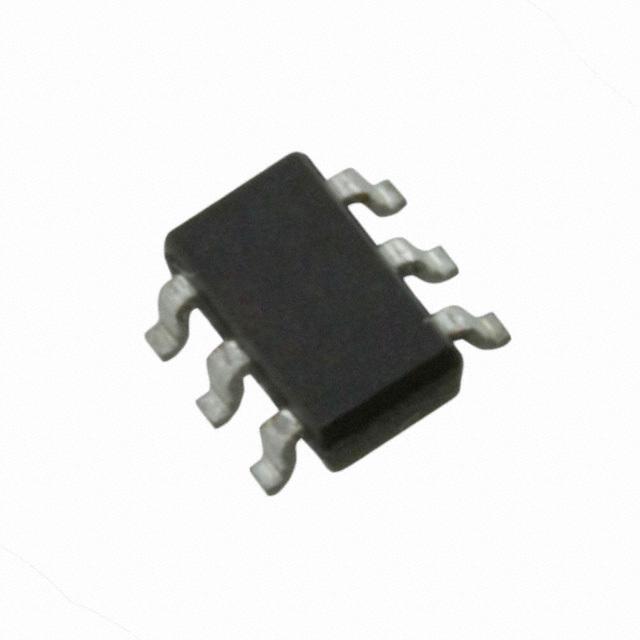

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF5852TRPBF
Manufacturer

International Rectifier
ChipWorker Part#

CW446511600
Category

MOSFET, MOSFET Transistor
RoHS

Lead free / RoHS Compliant
Description

Trans MOSFET N-CH 20V 2.7A 6Pin TSOP T/R
Documentation

Datasheet

IRF5852TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF5852TRPBF Specifications

Attribute	Attribute Value

Part Number	IRF5852TRPBF
Manufacturer	International Rectifier
ChipWorker Part#	CW446511600
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOP-6
Power Rating	960 mW
Drain to Source Resistance (on) (Rds)	90 mΩ
Polarity	N-Channel, Dual N-Channel
Power Dissipation	960 mW
Part Family	IRF5852
Threshold Voltage	1.25 V
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	2.70 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
