IRF7832TRPBF - Infineon

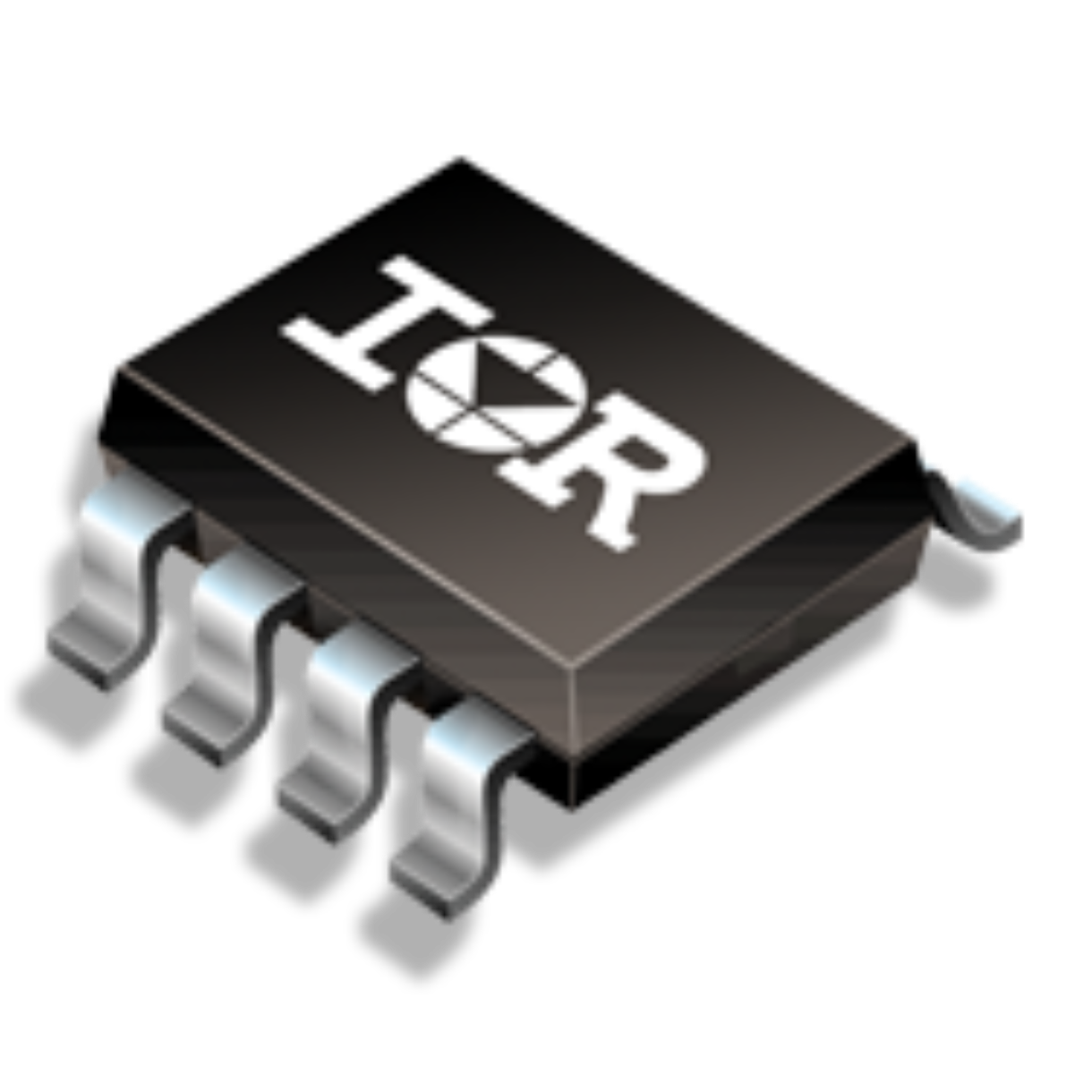

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF7832TRPBF
Manufacturer

Infineon
ChipWorker Part#

CW1488604
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N-CH 30V 20A
Documentation

Datasheet

IRF7832TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF7832TRPBF Specifications

Attribute	Attribute Value

Part Number	IRF7832TRPBF
Manufacturer	Infineon
ChipWorker Part#	CW1488604
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2.5 W
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0031 Ω
Polarity	N-CH
Power Dissipation	2.5 W
Threshold Voltage	2.32 V
Input Capacitance	4310 pF
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	20A
Rise Time	6.7 ns
Maximum Forward Voltage (Max)	1 V
Input Capacitance (Ciss)	4310pF @15V(Vds)
Input Power (Max)	2.5 W
Fall Time	13 ns
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta)
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 155℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Benefits:
RoHS Compliant
Industry-leading quality
Low RDS(ON) at 4.5V VGS
Fully Characterized Avalanche Voltage and Current
Ultra-Low Gate Impedance

expand all
