IRF8010STRLPBF - Infineon

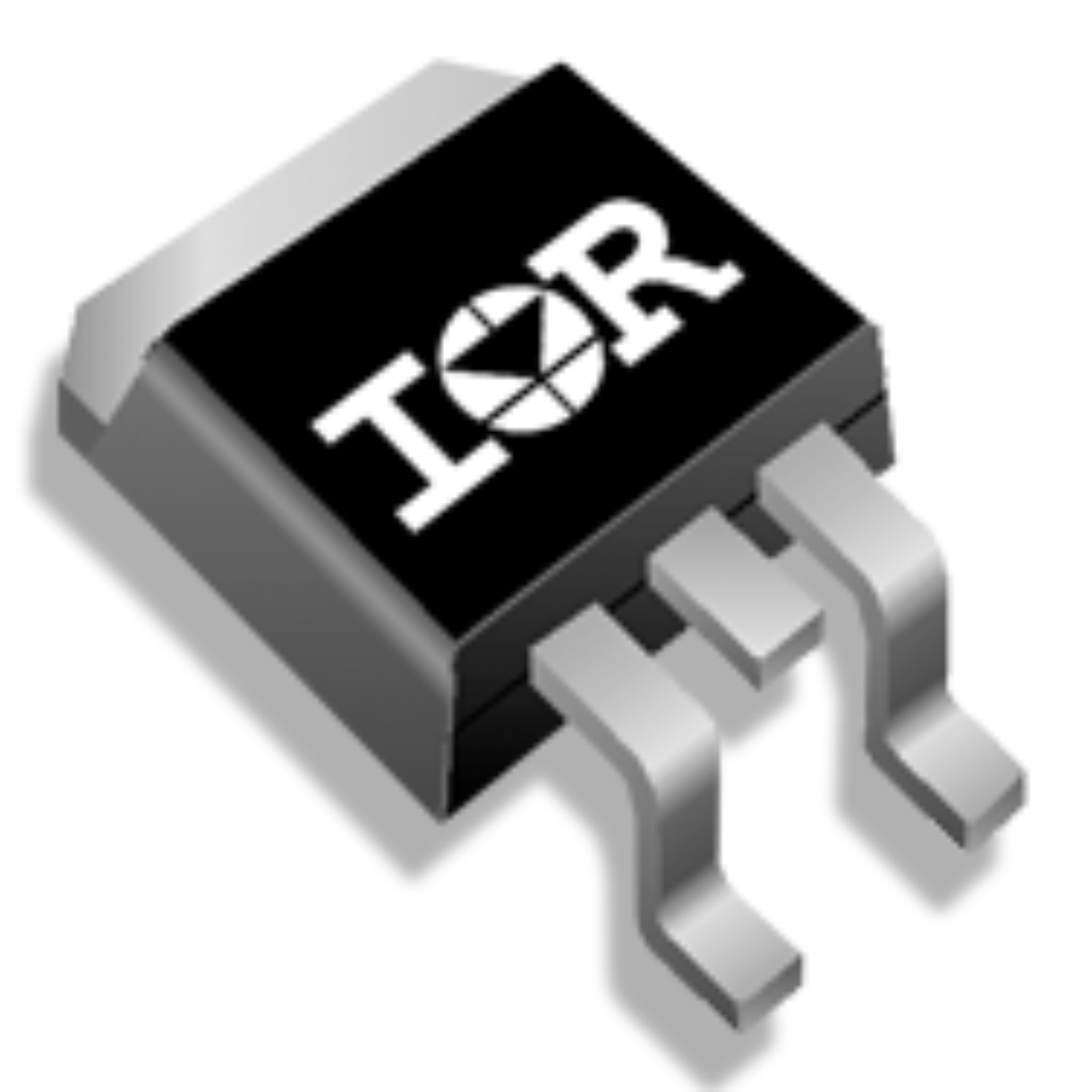

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF8010STRLPBF
Manufacturer

Infineon
ChipWorker Part#

CW10792775
Category

MOSFET, MOSFET Transistor
Package

TO-263-3
Description

D2PAK N-CH 100V 80A
Documentation

Datasheet

IRF8010STRLPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF8010STRLPBF Specifications

Attribute	Attribute Value

Part Number	IRF8010STRLPBF
Manufacturer	Infineon
ChipWorker Part#	CW10792775
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Power Rating	260 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.012 Ω
Polarity	N-CH
Power Dissipation	260 W
Threshold Voltage	20 V
Input Capacitance	3830 pF
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	80A
Rise Time	130 ns
Input Capacitance (Ciss)	3830pF @25V(Vds)
Input Power (Max)	260 W
Fall Time	120 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	260W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Benefits:
RoHS Compliant
Industry-leading quality
Dynamic dv/dt Rating
Fast Switching
Fully Avalanche Rated
175°C Operating Temperature

expand all
