IRF9333PBF - Infineon

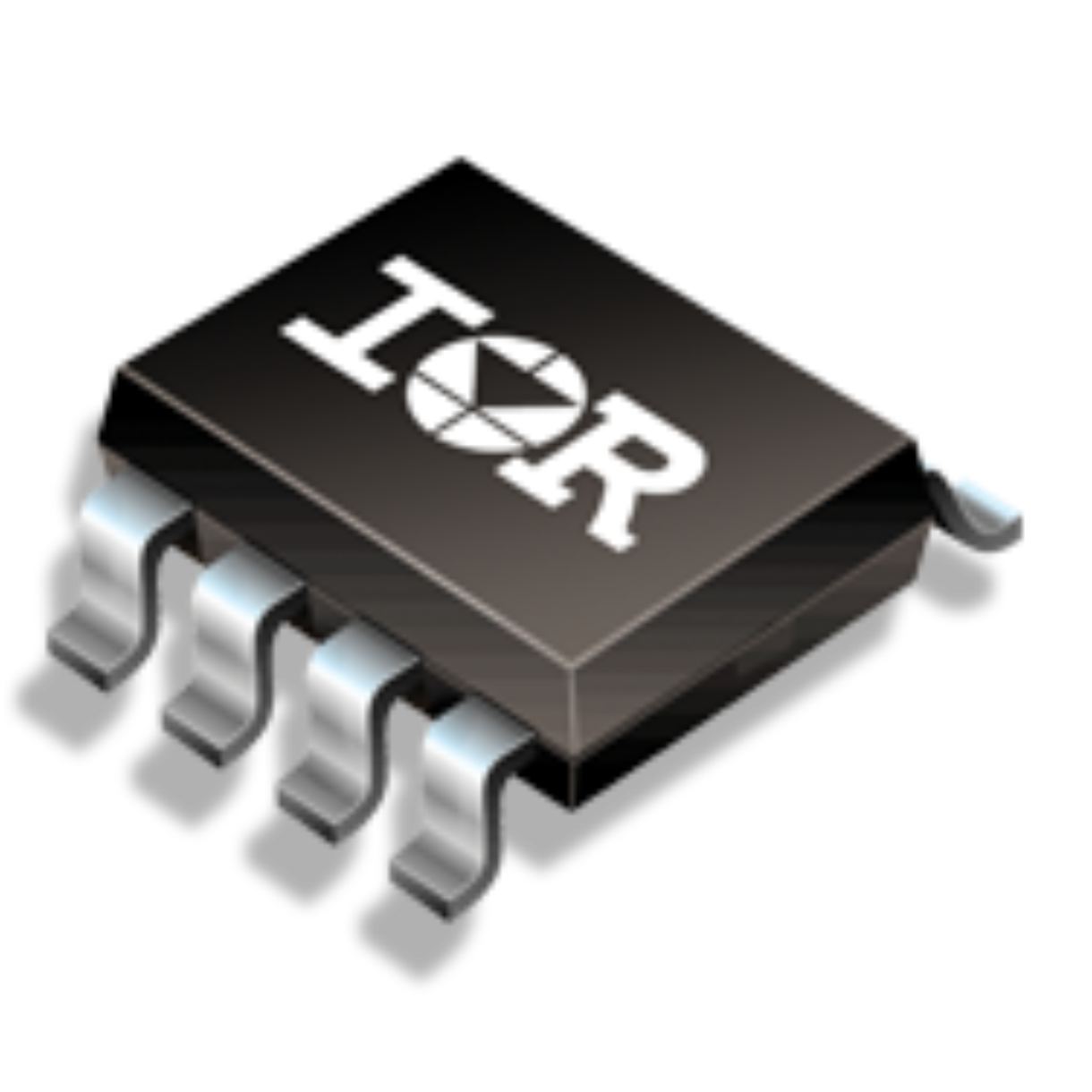

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF9333PBF
Manufacturer

Infineon
ChipWorker Part#

CW75295872
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC P-CH 30V 9.2A
Documentation

Datasheet

IRF9333PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF9333PBF Specifications

Attribute	Attribute Value

Part Number	IRF9333PBF
Manufacturer	Infineon
ChipWorker Part#	CW75295872
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2.5 W
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0156 Ω
Polarity	P-CH
Power Dissipation	2.5 W
Threshold Voltage	1.8 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	9.2A
Input Capacitance (Ciss)	1110pF @25V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta)
	expand all
Size-Length	4.98 mm
Size-Width	3.99 mm
Size-Height	1.57 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRF9333PBF is a P-channel HEXFET® Power MOSFET for use with charge and discharge switch for notebook PC battery application.
