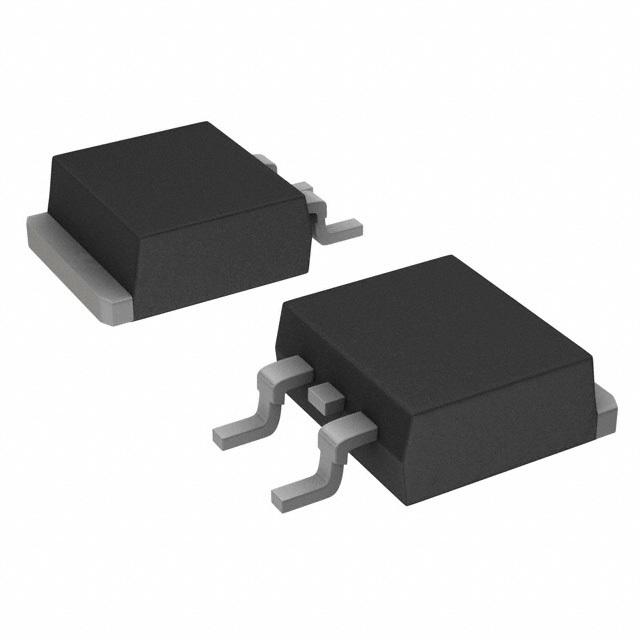

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRL5602SPBF
Manufacturer

International Rectifier
ChipWorker Part#

CW401867587
Category

MOSFET, MOSFET Transistor
RoHS

Lead free / RoHS Compliant
Description

Trans MOSFET P-CH 20V 24A 3Pin(2+Tab) D2PAK
Documentation

Datasheet

IRL5602SPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRL5602SPBF Specifications

Attribute	Attribute Value

Part Number	IRL5602SPBF
Manufacturer	International Rectifier
ChipWorker Part#	CW401867587
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263
Voltage Rating (DC)	-20.0 V
Current Rating	-24.0 A
Power Rating	75 W
Drain to Source Resistance (on) (Rds)	0.042 Ω
Polarity	P-Channel
Power Dissipation	75 W
Part Family	IRL5602S
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	-20.0 V
Continuous Drain Current (Ids)	-24.0 A
Rise Time	73 ns
Input Capacitance (Ciss)	1460pF @15V(Vds)
Input Power (Max)	75 W
Fall Time	84 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
