LM53602AQPWPRQ1 - TI

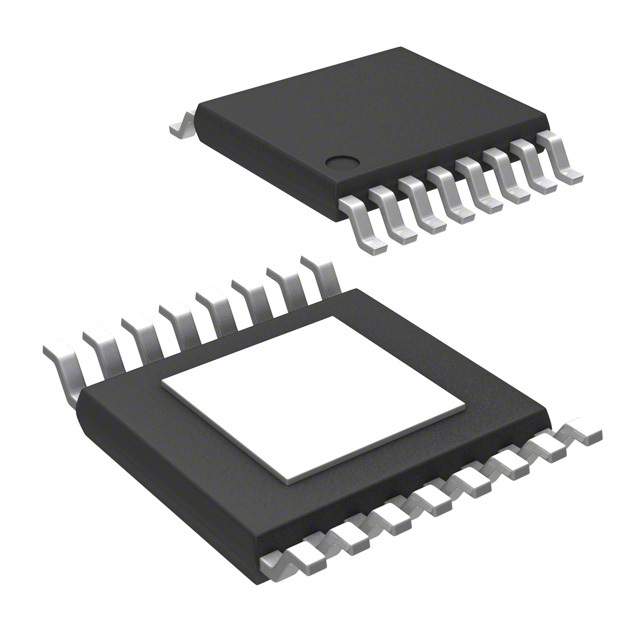

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM53602AQPWPRQ1
Manufacturer

TI
ChipWorker Part#

CW79813232
Category

Voltage Regulator
Package

HTSSOP-16
Description

Conv DC-DC 3.9V to 36V Step Down Single-Out 5V/3.3V/3.3V to 6V 2A Automotive 16Pin HTSSOP EP T/R
Documentation

Datasheet

LM53602AQPWPRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM53602AQPWPRQ1 Specifications

Attribute	Attribute Value

Part Number	LM53602AQPWPRQ1
Manufacturer	TI
ChipWorker Part#	CW79813232
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Number of Outputs	1 Output
Output Current	2 A
Quiescent Current	23.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2350 kHz
Topology	Buck
Input Voltage (Max)	36 V
Input Voltage (Min)	3.9 V
Output Voltage (Max)	6 V
Output Voltage (Min)	3.3 V
Output Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	36 V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Buck Switching Regulator IC Positive Adjustable 3.3V 1 Output 2A 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
