LM556CN/NOPB ,Clock Chip, Timing IC - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

100 points

Part No

LM556CN/NOPB
Manufacturer

TI
ChipWorker Part#

CW32996153
Category

Clock Chip, Timing IC
Package

DIP-14
Description

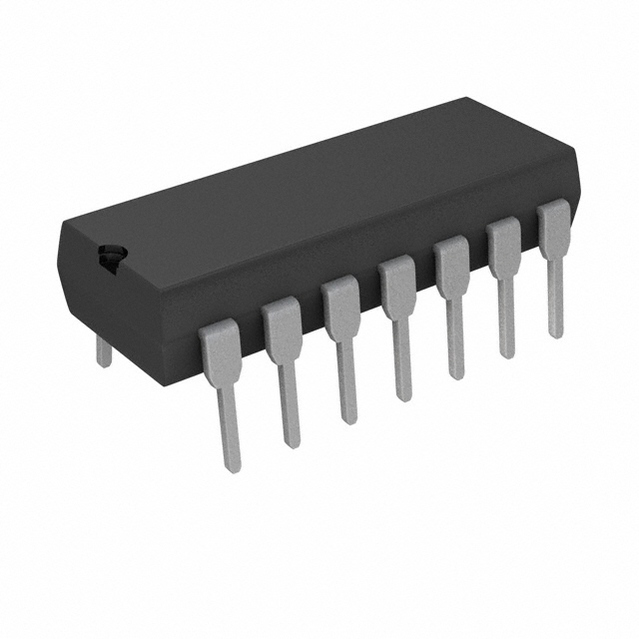

TEXAS INSTRUMENTS LM556CN/NOPB Timer, Oscillator & Pulse Generator IC, Dual, TTL, Astable, Monostable, 4.5V to 16V, DIP-14
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.09

Buy LM556CN/NOPB

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LM556CN/NOPB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LM556CN/NOPB Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LM556CN/NOPB
Manufacturer	TI
ChipWorker Part#	CW32996153
Category	Clock Chip, Timing IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	100 kHz
Supply Voltage (DC)	16.0V (max)
Input Voltage (DC)	15.0V (max)
Output Current	≤100 mA
Supply Current	10 mA
Number of Positions	14 Position
Power Dissipation	1620 mW
Quiescent Current	3.00 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1620 mW
Supply Voltage	4.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	19.05 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

LM556CN/NOPB

National Semiconductor

Product Description

The LM556CN/NOPB is a highly-stable Dual Timer capable of producing accurate time delays or oscillation. The LM556 device is a dual-timing version of the LM555 device. Timing is provided by an external resistor and capacitor for each timing function. The two timers operate independently of each other, sharing only VCC and ground. The circuits may be triggered and reset on falling waveforms. The output structures may sink or source 200mA.
Direct replacement for SE555/NE555
Timing from microseconds through hours
Operates in both astable and monostable modes
Adjustable duty cycle
Output and supply TTL compatible
0.005%/°C Temperature stability
Normally on and normally off output
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
