LMR14050QDPRRQ1 - TI

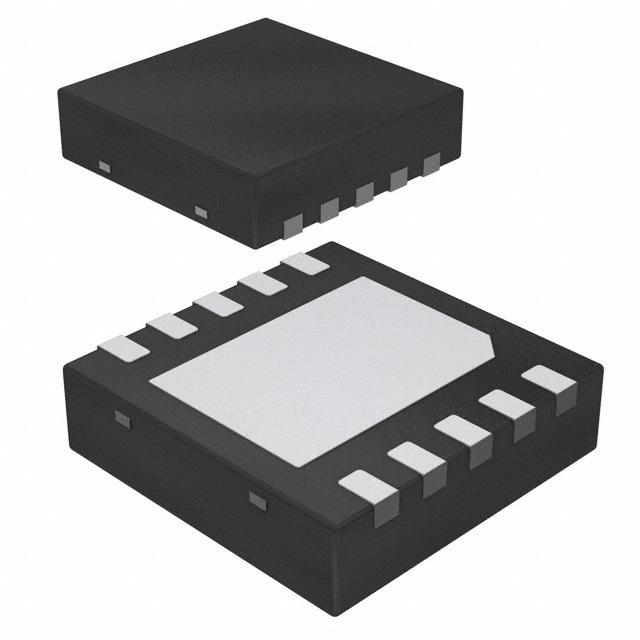

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LMR14050QDPRRQ1
Manufacturer

TI
ChipWorker Part#

CW17520718
Category

Switching Controller
Package

WDFN-10
Description

Switching Voltage Regulators Automotive 40V, 5A SIMPLE SWITCHER, 2.2MHz Step-Down Regulator with 40uA IQ 10-WSON -40℃ to 125℃
Documentation

Datasheet

LMR14050QDPRRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LMR14050QDPRRQ1 Specifications

Attribute	Attribute Value

Part Number	LMR14050QDPRRQ1
Manufacturer	TI
ChipWorker Part#	CW17520718
Category	Switching Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WDFN-10
Number of Outputs	1 Output
Output Voltage	0.8V ~ 28V
Output Current	5 A
Quiescent Current	40.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	200kHz ~ 2.5MHz
Switching Current	7.9 A
Input Voltage (Max)	40 V
Input Voltage (Min)	4 V
Output Voltage (Max)	28 V
Output Voltage (Min)	0.8 V
Output Current (Max)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	40 ℃
Input Voltage	40 V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The LMR14050-Q1 is a 40 V, 5 A step down regulator with an integrated high-side MOSFET. With a wide input range from 4 V to 40 V, its suitable for various applications from industrial to automotive for power conditioning from unregulated sources. An extended family is available in 2 A and 3.5 A options in pin-to-pin compatible packages, including LMR14020-Q1 and LMR14030-Q1. The regulators quiescent current is 40 µA in Sleep-mode, which is suitable for battery powered systems. An ultra-low 1 µA current in shutdown mode can further prolong battery life. A wide adjustable switching frequency range allows either efficiency or external component size to be optimized. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components of the device. A precision enable input allows simplification of regulator control and system power sequencing. The device also has built-in protection features such as cycle-by-cycle current limit, thermal sensing and shutdown due to excessive power dissipation, and output overvoltage protection.
The LMR14050-Q1 is available in an 8-pin HSOIC or 10-pin WSON package with exposed pad for low thermal resistance.
