LQW15AN68NJ00D - muRata

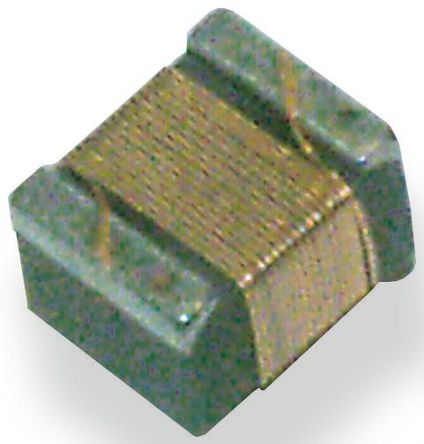

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoLQW15AN68NJ00D
-
ManufacturermuRata
-
ChipWorker Part#CW15535736
-
CategoryInductor
-
Package0402
-
Description0402 68nH ±5%
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
LQW15AN68NJ00D Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
LQW15AN68NJ00D Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | LQW15AN68NJ00D |
| Manufacturer | muRata |
| ChipWorker Part# | CW15535736 |
| Category | Inductor |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1005 |
| Case/Package | 0402 |
| Current Rating | 140 mA |
| Capacitance Tolerance | ±5 % |
| Inductance | 68 nH |
| Self Resonant Frequency | 2.5 GHz |
| Part Family | LQW |
| Shielding | No |
| Inductance Tolerance | ±5 % |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤1.96 Ω |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±5 % |
| Resistance (DC Max) | 1.96 Ω |
| expand all | |
| Size-Length | 1 mm |
| Size-Width | 0.5 mm |
| Size-Height | 0.5 mm |
| Weight | 0.0008 g |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 10000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
Product Description
- LQW15A_00 Series The LQW15A series consists of air core chip coil using a miniature alumina core.The tight inductance tolerance (+-0.2nH, +-3%) is available due to Murata"s original wound technology.The LQW15A series has high Q value in high frequency range and high self resonant frequency. It is suitable for high frequency circuits which are used in telecommunications equipment. Features 1. Horizontal wound structure enables tight inductance tolerance (+-0.2nH, +-3%) And tolerance of +-0.1nH, +-2% is available. 2. Wide variation in inductance value. 3. The subminiature dimensions (1.0x0.5mm) allow high density mounting. 4. The high self resonant frequency realizes high Q value and stable inductance at high frequency. 5. Low DC resistance design is ideal for low loss, high output and low power consumption. 6. Resin-coated surface enables excellent mounting.
