MAX202ESE - Maxim Integrated

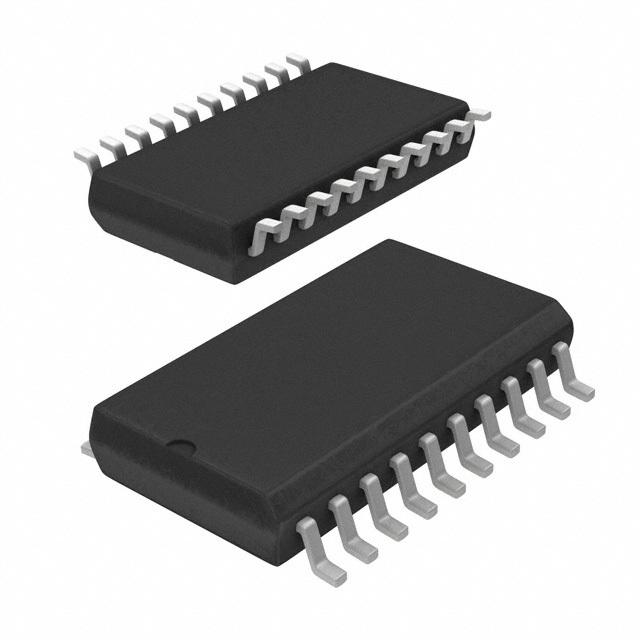

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX202ESE
Manufacturer

Maxim Integrated
ChipWorker Part#

CW80058203
Category

Interface IC, Interface Controller
Package

SOIC-16
Description

Dual Transmitter/Receiver RS-232 16Pin SOIC
Documentation

Datasheet

MAX202ESE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX202ESE Specifications

Attribute	Attribute Value

Part Number	MAX202ESE
Manufacturer	Maxim Integrated
ChipWorker Part#	CW80058203
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.00 V
Supply Current	15 mA
Data Rate	120 kbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2013/06/20

Product Description

2/2 Transceiver Full RS232 16-SO
