MSP430F415IPM - TI

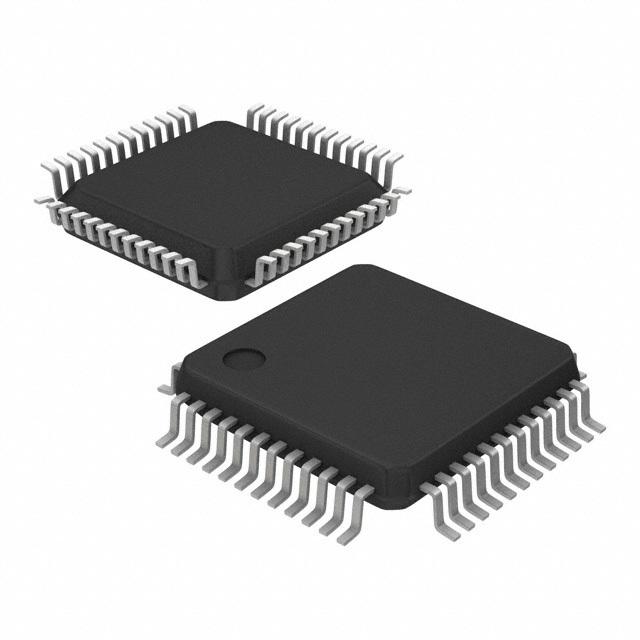

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MSP430F415IPM
Manufacturer

TI
ChipWorker Part#

CW11174303
Category

Microcontroller, MCU IC
Package

LQFP-64
Description

16Bit Ultra-Low-Power Microcontroller, 16KB Flash, 512B RAM, Comparator, 96 Segment LCD 64-LQFP -40℃ to 85℃
Documentation

Datasheet

MSP430F415IPM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MSP430F415IPM Specifications

Attribute	Attribute Value

Part Number	MSP430F415IPM
Manufacturer	TI
ChipWorker Part#	CW11174303
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LQFP-64
Frequency	8 MHz
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Operating Voltage	1.8VDC ~ 3.6VDC
Number of Positions	64 Position
Clock Speed	8 MHz
RAM Memory Size	512 b
Number of Bits	16 Bit
FLASH Memory Size	16 KB
Number of I/O Pins	48 IO
Access Time	8.00 µs
Core Architecture	MSP430
FRAM Memory Size	0 B
Number of Inputs and Outputs	48 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.
The MSP430x41x series are microcontroller configurations with one or two built-in 16-bit timers, a comparator, 96 LCD segment drive capability, and 48 I/O pins.
Typical applications include sensor systems that capture analog signals, convert them to digital values, and process the data and transmit them to a host system. The comparator and timer make the configurations ideal for industrial meters, counter applications, handheld meters, etc.
