NC7WZ07FHX - ON Semiconductor

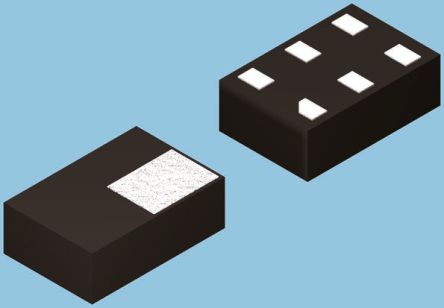

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NC7WZ07FHX
Manufacturer

ON Semiconductor
ChipWorker Part#

CW55146393
Category

Buffer Gate IC
Package

UFDFN-6
Description

Buffer/Driver 2CH Non-Inverting Open Drain CMOS 6Pin MicroPak T/R
Documentation

Datasheet

NC7WZ07FHX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NC7WZ07FHX Specifications

Attribute	Attribute Value

Part Number	NC7WZ07FHX
Manufacturer	ON Semiconductor
ChipWorker Part#	CW55146393
Category	Buffer Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	UFDFN-6
Number of Channels	2 Channel
Number of Positions	6 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	120 mW
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	1 mm
Size-Width	1 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Product Description

Buffer, Non-Inverting 2 Element 1 Bit per Element Open Drain Output 6-MicroPak2™
