NZQA6V8AXV5T1G - ON Semiconductor

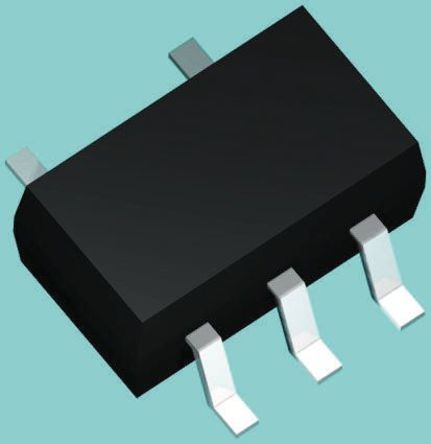

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NZQA6V8AXV5T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW4834324
Category

TVS Diode
Package

SOT-553-5
Description

ON SEMICONDUCTOR NZQA6V8AXV5T1G TVS Diode, Unidirectional, 4.3V, 13V, SOT-553, 5Pins
Documentation

Datasheet

NZQA6V8AXV5T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NZQA6V8AXV5T1G Specifications

Attribute	Attribute Value

Part Number	NZQA6V8AXV5T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW4834324
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-553-5
Voltage Rating (DC)	6.20 V
Operating Voltage	4.3 V
Capacitance	15 pF
Power Rating	100 W
Halogen Free Status	Halogen Free
Breakdown Voltage	6.8 V
Number of Positions	5 Position
Power Dissipation	380 mW
Clamping Voltage	13 V
Test Current	1 mA
Max Breakdown Voltage	7.14 V
Peak Pulse Power	20 W
Min Breakdown Voltage	6.47 V
Reverse Breakdown Voltage	6.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	0.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Features • Transient Voltage Suppressors ESD Protection Diode with Low Clamping Voltage • Small SOT−553 SMT Package • Stand Off Voltage: 3 V • Low Leakage Current • Four Separate Unidirectional Configurations for Protection • ESD Protection: IEC61000−4−2: Level 4 ESD Protection MILSTD 883C − Method 3015−6: Class 3 • Complies to USB 1.1 Low Speed & Full Speed Specifications • These are Pb−Free Devices
