P6KE12CA ,TVS Diode - ST Microelectronics

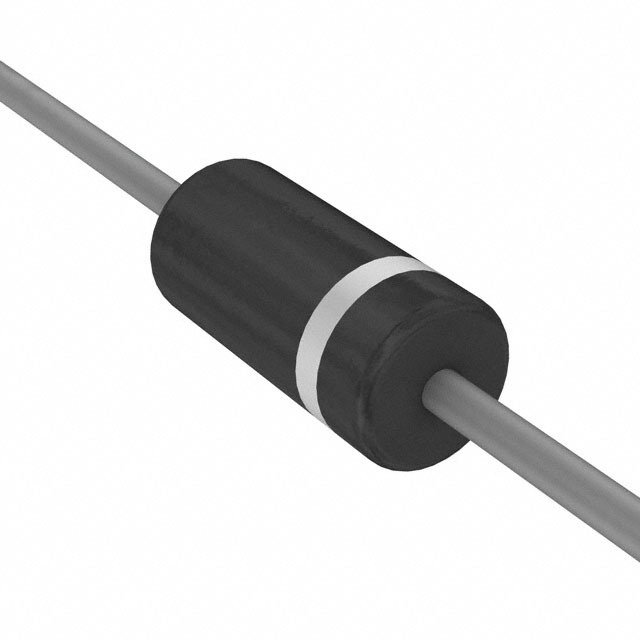

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

179 points

Part No

P6KE12CA
Manufacturer

ST Microelectronics
ChipWorker Part#

CW3232663
Category

TVS Diode
Package

DO-15
Description

P6KE Series 16.7V 0.6kW Through Hole Bi-Directional TVS Diode - DO-204AC
Documentation

Datasheet
Ships from

Moscow
Наличие

367 pcs In Stock
Estimated Price

$ 0.12

Buy P6KE12CA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

P6KE12CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

P6KE12CA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	P6KE12CA
Manufacturer	ST Microelectronics
ChipWorker Part#	CW3232663
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-15
Voltage Rating (DC)	12.0 V
Power Rating	600 W
Breakdown Voltage	12 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	21.7 V
Test Current	1 mA
Max Breakdown Voltage	12.6 V
Peak Pulse Power	600 W
Min Breakdown Voltage	11.4 V
Reverse Breakdown Voltage	11.4 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175 ℃
	expand all
Size-Length	6.75 mm
Size-Width	3.53 mm
Size-Height	3.53 mm
Size-Diameter	3.53 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

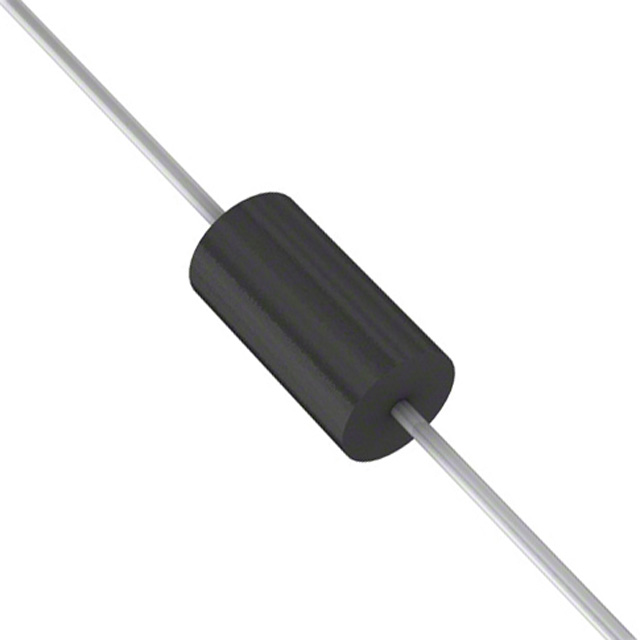

Similar products

Product Description

The Transil P6KE series Transient Voltage Surge Suppressor Diode provides high overvoltage protection by clamping action. It has instantaneous response to transient over-voltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC"s.
600W (10/1000µs ) Peak pulse power
6.8 to 440V Stand-off voltage range
Unidirectional and bidirectional types
Low clamping factor
Fast response time
