PS1720P02 - TDK

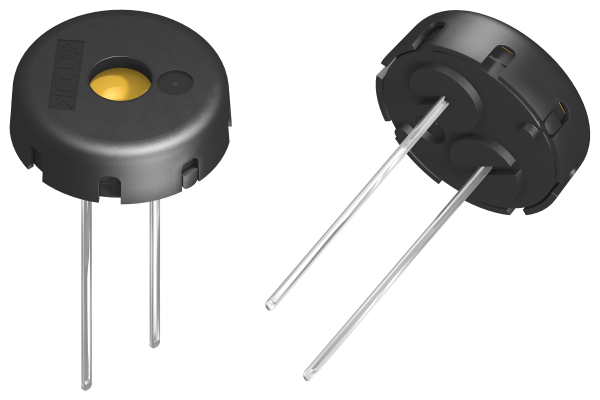

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PS1720P02
Manufacturer

TDK
ChipWorker Part#

CW894600
Category

Buzzer
Description

PS Series Ø17 x 8mm 70dB 3V 2kHz Piezoelectronic Buzzer
Documentation

Datasheet

PS1720P02 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PS1720P02 Specifications

Attribute	Attribute Value

Part Number	PS1720P02
Manufacturer	TDK
ChipWorker Part#	CW894600
Category	Buzzer
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Frequency	2 kHz
Supply Voltage (DC)	3.00V (max)
Voltage Rating (DC)	3.00 V
Self Resonant Frequency	2.00 kHz
Resonant Frequency	2 kHz
Input Voltage (Max)	30 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating	3 V
Supply Voltage (Max)	3 V
	expand all
Size-Height	8 mm
Size-Diameter	17.0 mm
Operating Temperature	-10℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8532240020
ECCN Code	EAR99

Product Description

The PS1720P02 is a 3V Piezoelectronic Buzzer with pin terminal/lead, low frequency tone, 70dB sound level and 2kHz resonant frequency. This PS series is high-performance buzzers that employ unimorph piezoelectric elements and are designed for easy incorporation into various circuits. It features extremely low power consumption, high sound pressure and can be used with automated inserters. Suitable for electric ranges, washing machines, computer terminals, various devices that require speech synthesis output, warning and alarm sounds of home appliances (air conditioners, refrigerators, fan forced heaters, cordless telephones, etc.) applications.
-20 to 70°C Operating temperature range
