REF195ES - ADI

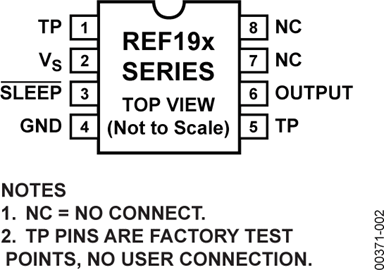

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

REF195ES
Manufacturer

ADI
ChipWorker Part#

CW50780446
Category

Voltage Reference
Package

SOIC-8
Description

V-Ref Precision 5V 30mA 8Pin SOIC N Tube
Documentation

Datasheet

REF195ES Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

REF195ES Specifications

Attribute	Attribute Value

Part Number	REF195ES
Manufacturer	ADI
ChipWorker Part#	CW50780446
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance Tolerance	±0.04 %
Input Voltage (DC)	15.0V (max)
Output Voltage	5 V
Output Current	30 mA
Supply Current	45 µA
Number of Channels	1 Channel
Input Voltage (Max)	18 V
Output Voltage (Min)	5 V
Output Current (Max)	30 mA
Accuracy	±2 mV
Input Voltage	5.1V ~ 15V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Temperature Coefficient	±5 ppm/℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

Temperature coefficient: 5 ppm/°C maximum High output current: 30 mA Low supply current: 45 μA maximum Initial accuracy: ±2 mV maximum1 Sleep mode: 15 μA maximum Low dropout voltage Load regulation: 4 ppm/mA Line regulation: 4 ppm/V Short-circuit protection
