RT7273GQW - Richtek

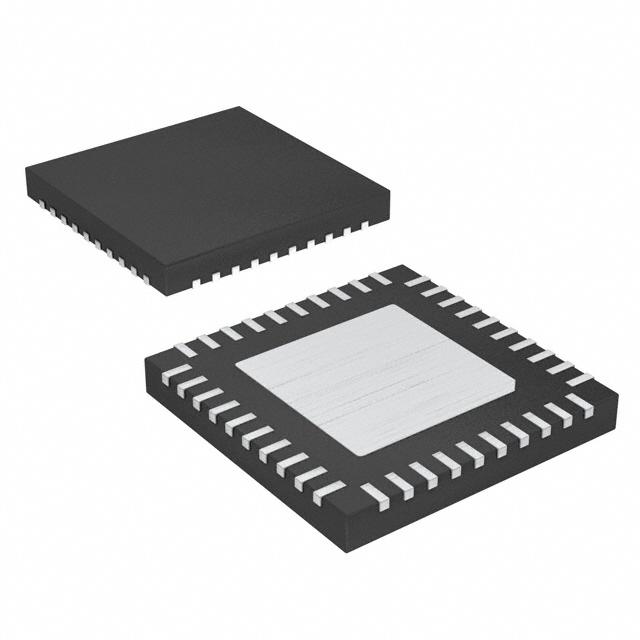

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RT7273GQW
Manufacturer

Richtek
ChipWorker Part#

CW44076985
Category

DC to DC Converter
Package

WFQFN-40
Description

Conv DC-DC 4.5V to 18V Step Down Triple-Out 0.8V to 17V 2.5A/2.5A/3.5A 40Pin WQFN EP
Documentation

Datasheet

RT7273GQW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RT7273GQW Specifications

Attribute	Attribute Value

Part Number	RT7273GQW
Manufacturer	Richtek
ChipWorker Part#	CW44076985
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	WFQFN-40
Number of Outputs	3 Output
Output Voltage	0.8V ~ 17V
Output Current	3A, 2A
Number of Positions	40 Position
Quiescent Current	20 mA
Switching Frequency	300kHz ~ 2.2MHz
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	17 V
Output Voltage (Min)	0.8 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 18V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

3-CH, 18V, Synchronous Step-Down Converter
