RT8008GB - Richtek

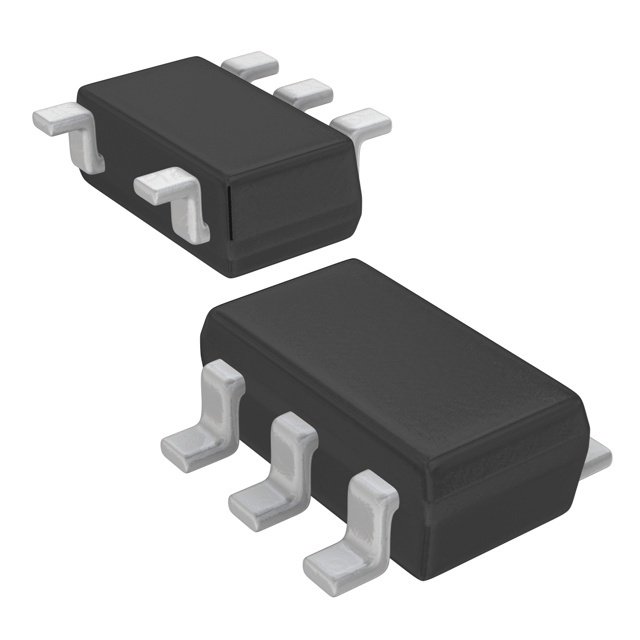

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RT8008GB
Manufacturer

Richtek
ChipWorker Part#

CW3190963
Category

DC to DC Converter
Package

SOT-23-5
Description

RICHTEK RT8008GB IC, DC-DC CONVERTER,BUCK,1.5MHz,SOT-23-5 New
Documentation

Datasheet

RT8008GB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RT8008GB Specifications

Attribute	Attribute Value

Part Number	RT8008GB
Manufacturer	Richtek
ChipWorker Part#	CW3190963
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	600 mA
Number of Positions	5 Position
Switching Frequency	1.8 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	600 mV
Output Current (Max)	0.6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.5V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

* Current mode control
Suitable for Li-battery input
300mR high-side, 250mR low-side switch
Internal soft-start
PSM mode for good light load efficiency
Synchronous
Stable with low ESR ceramic output capacitors.
100% duty-cycle
