S29GL064N90TFI040 - Spansion

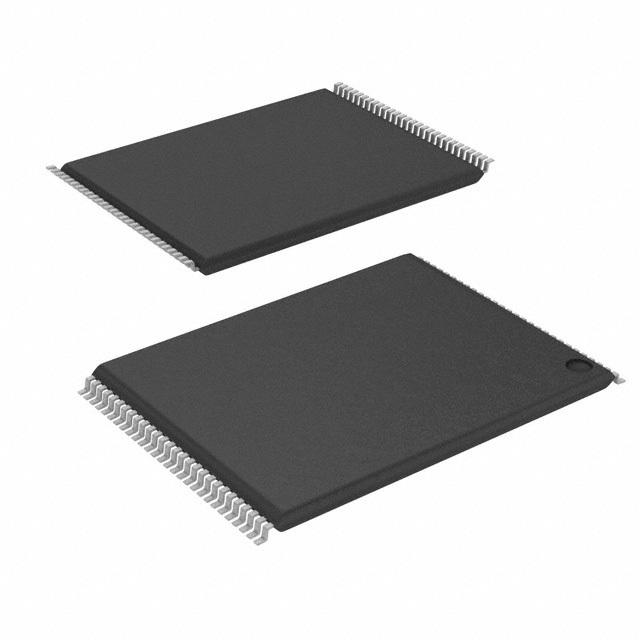

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

S29GL064N90TFI040
Manufacturer

Spansion
ChipWorker Part#

CW43543436
Category

Flash Memory, Flash
Package

TSOP-48
Description

NOR Flash Parallel 3V/3.3V 64Mbit 8M/4M x 8Bit/16Bit 90ns 48Pin TSOP Tray
Documentation

Datasheet

S29GL064N90TFI040 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

S29GL064N90TFI040 Specifications

Attribute	Attribute Value

Part Number	S29GL064N90TFI040
Manufacturer	Spansion
ChipWorker Part#	CW43543436
Category	Flash Memory, Flash
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSOP-48
Supply Voltage (DC)	2.70V (min)
Supply Current	50 mA
Number of Positions	48 Position
Access Time	90 ns
Memory Size	8000000 B
Access Time(Max)	90 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR

Product Description

The S29GL064N90TFI040 is a 3V single-power Flash Memory manufactured using 110nm MirrorBit technology. The S29GL064N is a 64MB device organized as 4,194,304 words or 8,388,608 bytes. The S29GL032N is a 32MB device organized as 2,097,152 words or 4,194,304 bytes. Each device requires only a single 3.0V power supply for both read and write functions. In addition to a VCC input, a high-voltage accelerated program (ACC) feature provides shorter programming times through increased voltage on the WP#/ACC or ACC input. This feature is intended to facilitate factory throughput during system production, but may also be used in the field if desired.
Single power supply operation
