SA24CA - Littelfuse

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SA24CA
Manufacturer

Littelfuse
ChipWorker Part#

CW11967533
Category

TVS Diode
Package

DO-204AC-2
Description

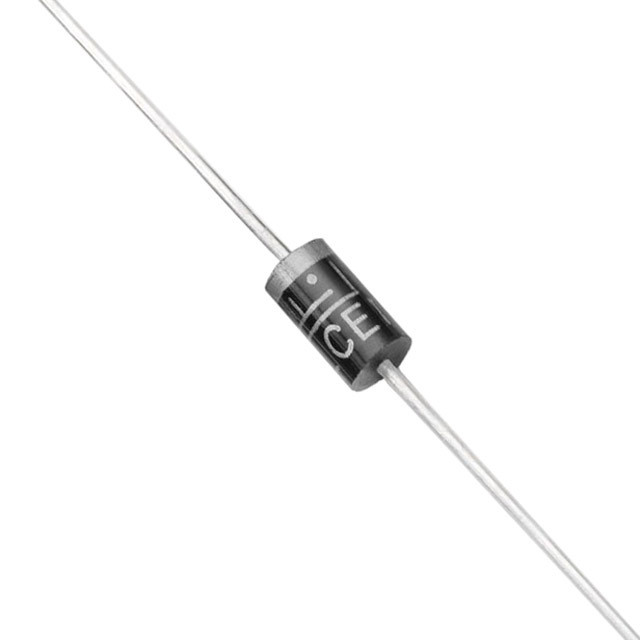

SA Series 38.9V 0.5kW Through Hole Bi-Directional TVS Diode - DO-204AC
Documentation

Datasheet

SA24CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SA24CA Specifications

Attribute	Attribute Value

Part Number	SA24CA
Manufacturer	Littelfuse
ChipWorker Part#	CW11967533
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AC-2
Voltage Rating (DC)	24.0 V
Operating Voltage	24 V
Power Rating	500 W
Breakdown Voltage	29.5 V
Number of Positions	2 Position
Power Dissipation	500 W
Clamping Voltage	38.9 V
Test Current	1 mA
Max Breakdown Voltage	29.5 V
Max Forward Surge Current (Ifsm)	70 A
Peak Pulse Power	500 W
Min Breakdown Voltage	26.7 V
Reverse Breakdown Voltage	26.7 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 175℃
	expand all
Size-Length	7.60 mm
Size-Diameter	3.60 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The SA Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in computer and consumer electronic applications.
FEATURES
•RoHS Compliant
• 5.0 to 180 Volts
• Uni-directional and Bi-directional
• Glass passivated chip junction
• 500W peak pulse power capability on 10/1000µs waveform
• Excellent clamping capability
• Repetition rate (duty cycle): 0.01%
•Low incremental surge resistance
•Fast response time: typically less than 1.0ps from 0 Volts to BV for unidirectional and 5.0ns for bidirectional types
•Typical IR less than 1µA above 10V
•High temperature soldering guaranteed: 265˚C/10 seconds/.375",(9.5mm) lead length, 5lbs.,(2.3kg) tension
