SM30T39CAY - ST Microelectronics

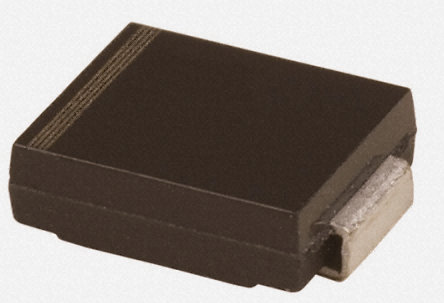

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SM30T39CAY
Manufacturer

ST Microelectronics
ChipWorker Part#

CW54955830
Category

TVS Diode
Package

DO-214AB
Description

STMICROELECTRONICS SM30T39CAY TVS Diode, Transil SM30TY Series, Bidirectional, 33V, 58V, DO-214AB, 2Pins
Documentation

Datasheet

SM30T39CAY Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SM30T39CAY Specifications

Attribute	Attribute Value

Part Number	SM30T39CAY
Manufacturer	ST Microelectronics
ChipWorker Part#	CW54955830
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	3 kW
Clamping Voltage	58 V
Test Current	1 mA
Max Breakdown Voltage	40.5 V
Peak Pulse Power	3000 W
Min Breakdown Voltage	36.7 V
Reverse Breakdown Voltage	36.7 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	7.15 mm
Size-Width	6.25 mm
Size-Height	2.45 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The Transil SM30TY series TVS Diode designed to protect automotive sensitive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time.
13 to 33V Stand off voltage range
Unidirectional and bidirectional types
2200W (10/1000µs) High power capability at Tj max
-55 to 150°C Operating junction temperature range
