SN74ACT574DWR ,Flip Flop IC - TI

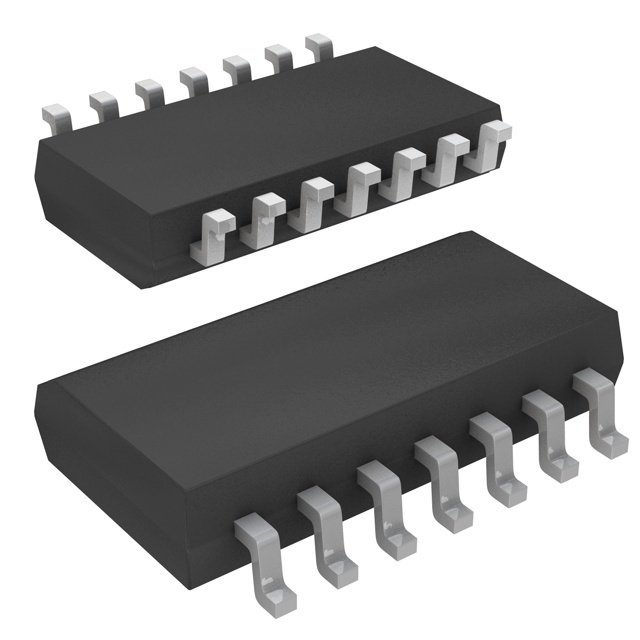

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

91 points

Part No

SN74ACT574DWR
Manufacturer

TI
ChipWorker Part#

CW5610389
Category

Flip Flop IC
Package

SOIC-20
Description

TEXAS INSTRUMENTS SN74ACT574DWR Flip-Flop, Tri State Non Inverted, Positive Edge, 74ACT574, D, 7ns, 110MHz, 50mA, SOIC
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.03

Buy SN74ACT574DWR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SN74ACT574DWR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SN74ACT574DWR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SN74ACT574DWR
Manufacturer	TI
ChipWorker Part#	CW5610389
Category	Flip Flop IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Frequency	110 MHz
Supply Voltage (DC)	4.50V ~ 5.50V
Number of Outputs	8 Output
Output Current	50 mA
Number of Circuits	8 Circuit
Number of Positions	20 Position
Clock Speed	110 MHz
Number of Bits	8 Bit
Propagation Delay Max (tpd)	12.0 ns
Voltage Nodes	5.00 V
Input Capacitance	4.5 pF
Output Current Drive	-1.00 mA
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	12.8 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Weight	0.0080113489688 kg
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The SN74ACT574DWR is an octal edge-triggered D-type Flip-flop with 3-state outputs. It is designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers and working registers. On the positive transition of the clock input, the Q outputs are set to the logic levels set up at the data (D) inputs. A buffered output-enable (OE)\ input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines in a bus-organized system without need for interface or pull-up components. OE\ does not affect internal operations of the flip-flop.
9ns at 5V Maximum tpd
Inputs are TTL-voltage compatible
Green product and no Sb/Br
