STPS2L30A - ST Microelectronics

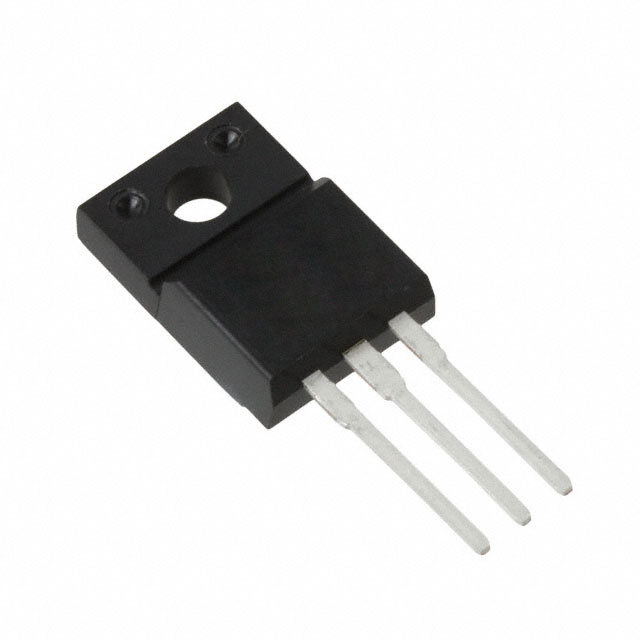

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STPS2L30A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW3354945
Category

Schottky Diode
Package

DO-214AC
Description

Diode Schottky 30V 2A 2Pin SMA T/R
Documentation

Datasheet

STPS2L30A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STPS2L30A Specifications

Attribute	Attribute Value

Part Number	STPS2L30A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW3354945
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Voltage Rating (DC)	30.0 V
Current Rating	2.00 A
Output Current	≤2.00 A
Number of Positions	2 Position
Forward Voltage	450mV @2A
Polarity	Standard
Thermal Resistance	30℃/W (RθJL)
Forward Current	2 A
Max Forward Surge Current (Ifsm)	75 A
Maximum Forward Voltage (Max)	375 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	expand all
Size-Length	4.6 mm
Size-Width	2.9 mm
Size-Height	2.45 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The STPS2L30A is a single low-drop power Schottky Rectifier suitable for switched mode power supplies and high frequency DC to DC converters, free-wheel diode and integrated circuit latch up protection. This device is especially intended for use in parallel with MOSFETs in synchronous rectification.
Low drop forward-voltage for less power dissipation
Optimized conduction/reverse losses trade-off which lead to the highest yield
Surface-mount miniature packages
Avalanche capability specified
